High Impedance Common Mode Inductors
High Impedance Common Mode Inductors
SKU:IND-8bb6b1
Experience superior EMI and RFI suppression with our high-performance Common Mode Inductors designed for reliable electronic equipment operation.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Impedance Common Mode Inductors
$24.99
Quantity: 1
Claim Your Seller Account
High Impedance Common Mode Inductors
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UT/ET Series Common Mode Inductors are essential components for mitigating electromagnetic interference and radio frequency interference in various electronic equipment. With features like low leakage flux, high self-resonant frequency, and low stray capacitance, these inductors ensure optimal performance and reliability. They offer a configuration type of Horizontal, a current rating of 1.50 A, and a wide operating temperature range of -20 to 105 ºC, making them suitable for diverse applications. Meeting industry standards such as CSA, IEC, and UL, these inductors are designed to excel in demanding environments.
Product Specifications
Specifications Configuration Type
Horizontal
Specifications Current Rating
1.50 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
High Impedance at Applicable Frequency | High Self-Resonant Frequency | Low Leakage Flux | Low Stray Capacitance in Section Winding

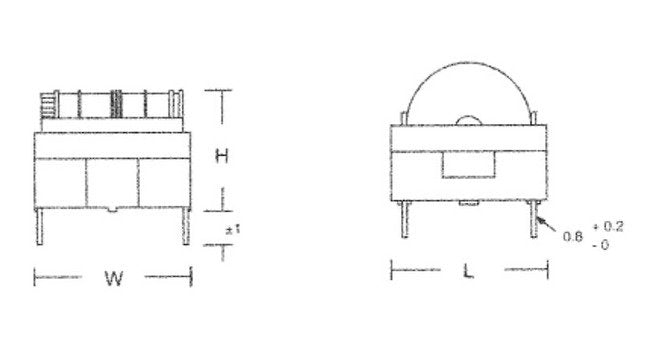

Specifications Height H
23 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
26.5 mm
Specifications Max Dcr
0.25 Ohm
Specifications Max Inductance Difference
150 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
3.60 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
21.0 mm
Specifications Pin Mounting B
15.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.88 oz
Specifications Width W
26.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
