The UT/ET Series Common Mode Inductors are essential components in combating electromagnetic interference and radio frequency interference. Designed with low leakage flux and high impedance, these inductors ensure optimal performance in electronic equipment. With features like high self-resonant frequency and low stray capacitance, they are ideal for power supply line applications. Measuring 30mm x 30mm x 25mm and with a current rating of 3.00 A, these inductors offer reliability and efficiency for diverse industrial needs.
Product Specifications
Specifications Configuration Type
Horizontal
Specifications Current Rating
3.00 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
High Impedance at Applicable Frequency | High Self-Resonant Frequency | Low Leakage Flux | Low Stray Capacitance in Section Winding

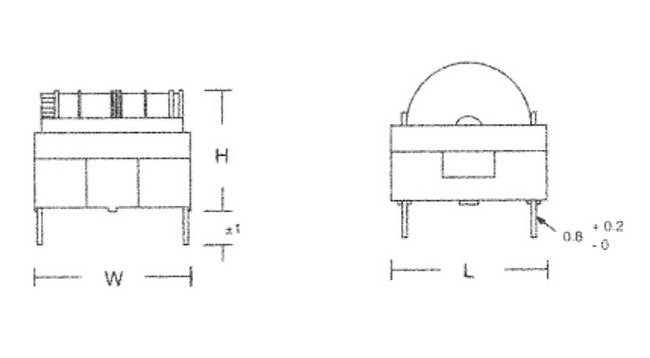

Specifications Height H
25 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
30 mm
Specifications Max Dcr
0.1 Ohm
Specifications Max Inductance Difference
100 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
5.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
24.0 mm
Specifications Pin Mounting B
20.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
1.40 oz
Specifications Width W
30 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
