High Impedance Common Mode Inductors - UT/ET Series

Name: High Impedance Common Mode Inductors - UT/ET Series
Brand: Triad Magnetics
SKU: IND-41b070
Price: 29.99 USD
Availability: OutOfStock

SKU:IND-41b070

Reduce EMI/RFI with precision - UT/ET Series Inductors

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UT/ET Series Common Mode Inductors are crucial components for reducing electromagnetic interference and radio frequency interference in various electronic applications. Featuring low leakage flux, high self-resonant frequency, high impedance at applicable frequencies, and low stray capacitance, these inductors ensure optimal performance and reliability. With a Configuration Type of Horizontal and meeting industry standards such as CSA, IEC, and UL, these inductors are ideal for applications requiring high-quality suppression of EMI and RFI.

Product Specifications

Specifications Configuration Type

Horizontal

Specifications Current Rating

0.50 A

Specifications Dielectric Withstanding Voltage Ac

2,000 V

Specifications Features

High Impedance at Applicable Frequency | High Self-Resonant Frequency | Low Leakage Flux | Low Stray Capacitance in Section Winding

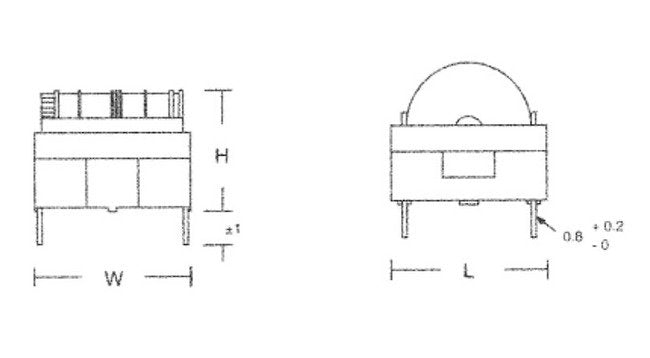

Specifications Height H

25 mm

Specifications Industry Standards

CSA | IEC | UL

Specifications Length L

30 mm

Specifications Max Dcr

2.6 Ohm

Specifications Max Inductance Difference

2,500 ÂµH

Specifications Max Temperature Rise

45 ÂºC

Specifications Min Inductance

120.00 mH

Specifications Min Insulation Resistance

100 mOhm

Specifications Operating Temperature Range

-20 to 105 ÂºC

Specifications Pin Mounting A

24.0 mm

Specifications Pin Mounting B

20.0 mm

Specifications Rated Voltage Ac

250 V

Specifications Weight

1.40 oz

Specifications Width W

30 mm

Technical Notes 0

The inductance difference measures between the coil L1 and L2.

High Impedance Common Mode Inductors - UT/ET Series
