High Isolation PC Mount Power Transformers
High Isolation PC Mount Power Transformers
SKU:POW-83a2a3
Experience optimal isolation and efficiency with our PC Mount Power Transformers, meeting rigorous international standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Isolation PC Mount Power Transformers
$29.99
Quantity: 1
Claim Your Seller Account
High Isolation PC Mount Power Transformers
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

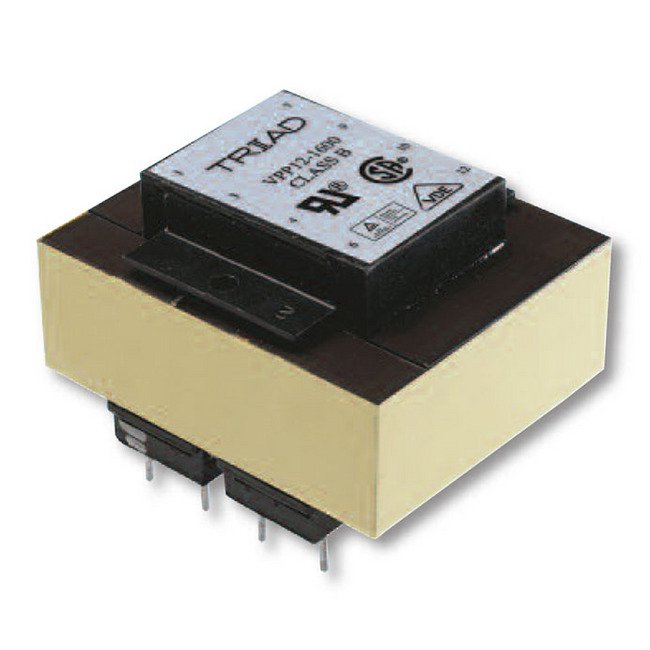

The PC Mount World Series™ Power Transformers are engineered with a dual bobbin construction, featuring an insulating shroud made of a high-temperature material that exceeds UL flammability requirements. These transformers ensure very high isolation between primary and secondary windings and the core, eliminating the need for electrostatic shielding. With ratings ranging from 2.5 VA to 56.0 VA, they offer precise pin placement for through-hole PC board mounting. Compliant with CSA, IEC, TUV, and UL standards, these transformers are versatile for various applications.
Product Specifications
Note 0
Class 2/3 UL File: E65390

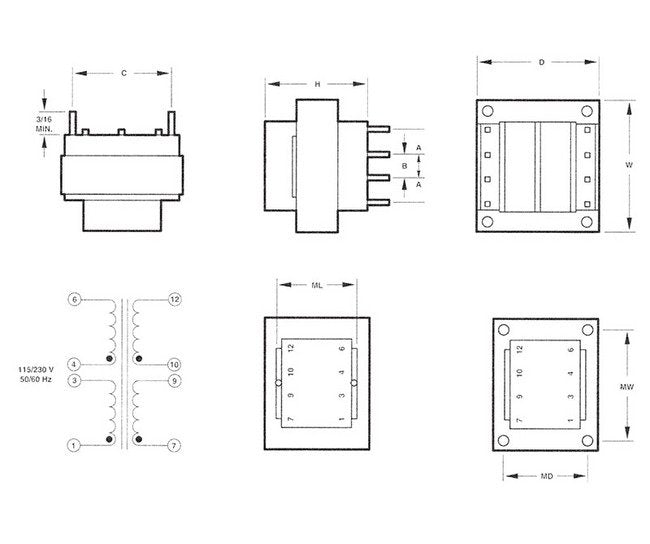

Specifications Depth D
1 9/16 in
Specifications Dimension A
0.200 in
Specifications Dimension B
0.400 in
Specifications Dimension C
1.140 in
Specifications Electrical Rating
10 V·A
Specifications Height H
1 3/8 in
Specifications Industry Standards
CSA | IEC | TUV | UL
Specifications Mounting Length
1 1/4 in
Specifications Pin Dimension
0.036 in²
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
10.0 V at 1.0 A
Specifications Secondary Series
20.0 V CT at 0.5 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.50 lb
Specifications Width W
1 7/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
