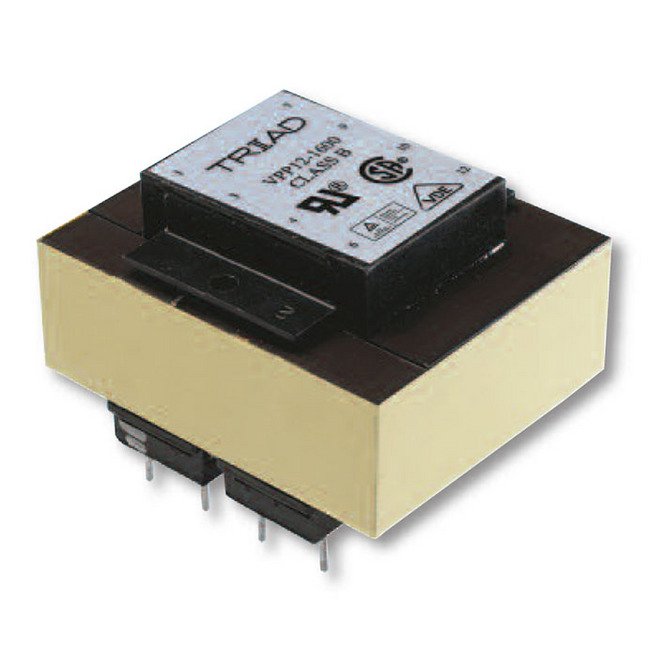

Experience exceptional performance with our High-Isolation PC Mount World Series™ Power Transformers. Featuring a dual bobbin construction with high-temperature insulating materials exceeding UL flammability requirements, these transformers offer very high isolation between primary and secondary windings. With ratings from 2.5 VA to 56.0 VA, precise pin placement for through hole mounting, and compliance with CSA, IEC, TUV, and UL standards, these transformers are versatile and reliable for universal applications.
Product Specifications
Note 0
Class 2/3 UL File: E65390

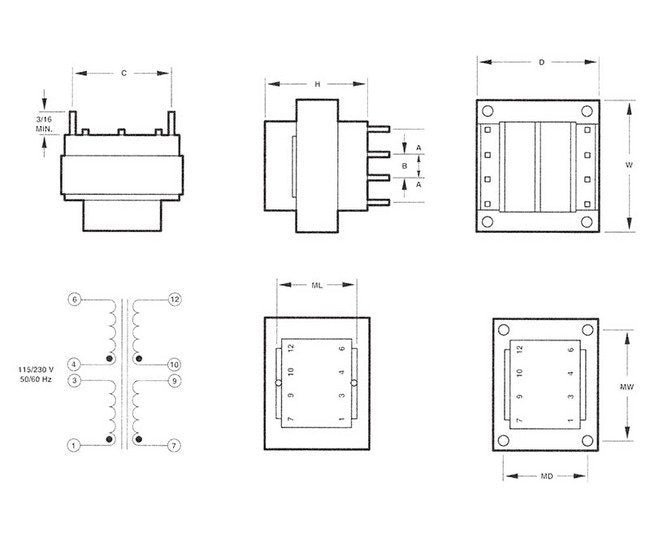

Specifications Depth D
1 5/16 in
Specifications Dimension A
0.200 in
Specifications Dimension B
0.250 in
Specifications Dimension C
1.000 in
Specifications Electrical Rating
2.5 V·A
Specifications Height H
1 1/8 in
Specifications Industry Standards
CSA | IEC | TUV | UL
Specifications Mounting Length
1 1/16 in
Specifications Pin Dimension
0.025 in²
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
12.0 V at 0.2 A
Specifications Secondary Series
24.0 V CT at 0.1 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.30 lb
Specifications Width W
1 5/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
