High Level Shielding Liquid-Tight Flexible Metal Conduit - ShieldTite® EMI/EMP

Name: High Level Shielding Liquid-Tight Flexible Metal Conduit - ShieldTite® EMI/EMP
Brand: Anamet Electrical, Inc.
SKU: LIQ-720804
Price: 299.99 USD
Availability: OutOfStock

SKU:LIQ-720804

Explore ShieldTite® EMI/EMP Conduit - Ultimate Shielding for High RFI/EMI Environments

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

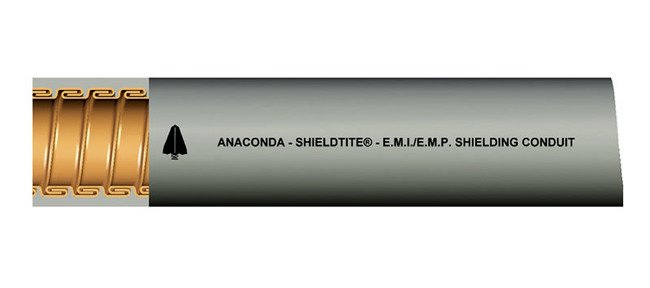

The ShieldTite® EMI/EMP High Level Shielding Liquid-Tight Flexible Metal Conduit is engineered for superior protection with a bronze core ensuring high shielding effectiveness. Meeting the stringent Mil-STD-1310H standards, this conduit offers 81 - 119 dB shielding at 1 Kilohertz to 1 Gigahertz frequencies. With a temperature range of -51ºF to +221ºF (-46ºC to 105ºC) and RoHS/WEEE certifications, it ensures reliable performance in diverse environments. Suitable for high-level RFI and EMI shielding, it combines durability and security in one robust solution.

Product Specifications

Application 0

For High Level RFI and EMI ShieldingTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

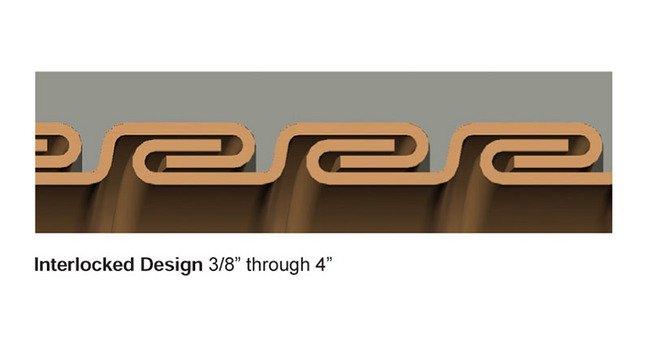

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -51ºF to + 221ºF (-46ºC to +105ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.

Specifications Approx Inside Bend Radius

13.5 in | 342.9 mm

Specifications Approx Weight Per 100 Ft

211 lbs | 95.71 kg

Specifications Color

GRAY

Specifications Core Material

Bronze

Specifications Cross Reference

78882 | EMS-18

Specifications Electrical Trade Size

3 in | 78 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

3.070 to 3.100 in | 77.978 to 78.740 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

Custom

Specifications Note

Available in Random Lengths

Specifications Outside Diameter

3.460 to 3.500 in | 87.884 to 88.900 mm

Specifications Packaging

Contact Anamet

Specifications Type

SHIELDTITE®

High Level Shielding Liquid-Tight Flexible Metal Conduit - ShieldTite® EMI/EMP
