High Lift Flange Test Plug - 151 Series, 0.13 in Clearance
High Lift Flange Test Plug - 151 Series, 0.13 in Clearance
SKU:HIG-635d18
Revolutionize your weld testing with the 151 Series High Lift Flange Test Plug. Streamline procedures, save time, and cut costs effortlessly.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
High Lift Flange Test Plug - 151 Series, 0.13 in Clearance
$249.99
Quantity: 1
Claim Your Seller Account
High Lift Flange Test Plug - 151 Series, 0.13 in Clearance
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 151 Series High Lift Flange Weld Test Plug is a game-changer for weld testing procedures. With a unique 'High Lift' seal design, this plug offers increased seal to pipe clearance and higher seal expansion, allowing it to easily pass over weld penetrations, eliminating the need for grinding. Designed to monitor downstream conditions, isolate, and purge the weld area, this plug streamlines the entire welding and testing process to ANSI B16.5 standards. Its rugged construction, versatile seal materials, and precise seal installation depth adjustment make it a reliable and efficient tool for fast and accurate testing, reducing downtime delays and waste disposal costs.

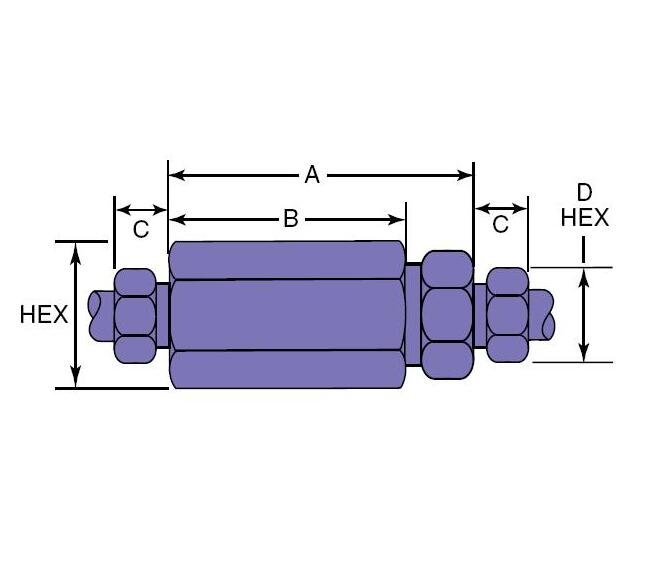

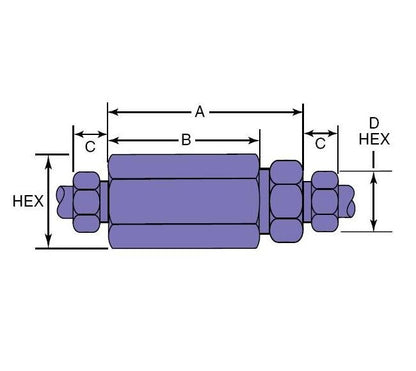

Product Specifications
Specifications A Length
3.18 in | 80.77 mm
Specifications B Length
2.56 in | 65.02 mm
Specifications Connection Size And Type
SW250
Specifications C Length
0.44 in | 11.17 mm
Specifications D Hex
0.63 in | 16.00 mm
Specifications Effective Filter Element Area
0.81 in² | 522.57 mm²
Specifications Hex
0.81 in | 20.57 mm
Specifications Micron Size
5
Specifications Orifice
0.188 in | 4.78 mm
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
