High Lift Flange Weld Test Plug - 151 Series
High Lift Flange Weld Test Plug - 151 Series
SKU:HIG-759387
Achieve efficient and compliant welding and testing with the High Lift Flange Weld Test Plug - 151 Series. Fast installation, improved seal clearance, and minimal water use.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Lift Flange Weld Test Plug - 151 Series
$129.99
Quantity: 1
Claim Your Seller Account
High Lift Flange Weld Test Plug - 151 Series
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 151 Series High Lift Flange Weld Test Plug allows for steam, sniff, purge, weld, and test operations with ease. Featuring a 'High Lift' seal design for increased seal to pipe clearance and higher seal expansion, this plug eliminates the need for grinding out deep root penetrations. Designed to meet stringent institutional procurement standards, this rugged plug offers fast and easy installation and testing, improved seal-to-pipe clearance, and minimal water requirements, reducing downtime and environmental impact while ensuring compliance with ANSI B16.5 requirements.

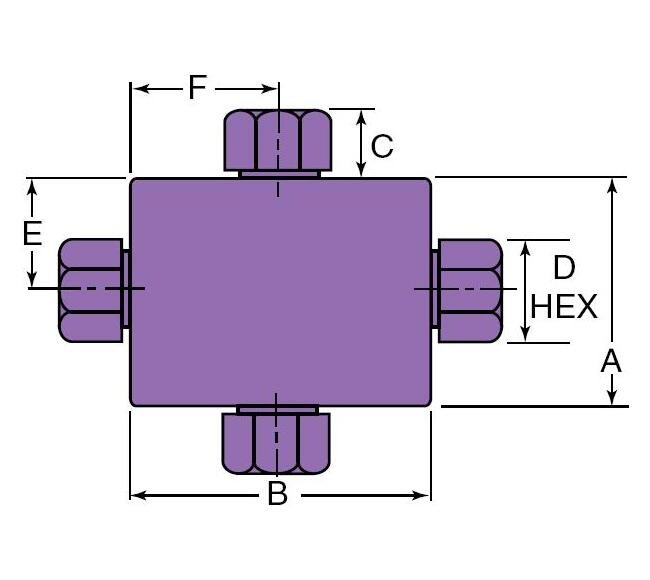

Product Specifications
Specifications A Height
1.38 in | 34.93 mm
Specifications Block Thickness
0.56 in | 14.27 mm
Specifications B Width
1.38 in | 34.93 mm
Specifications Connection Type
W062
Specifications C Height
0.31 in | 7.87 mm
Specifications D Hex
0.38 in | 9.65 mm
Specifications E Length
0.69 in | 17.45 mm
Specifications F Length
0.69 in | 17.45 mm
Specifications Minimum Opening
0.055 in | 1.40 mm
Specifications Outside Diameter Tube
1.59 mm | 1/16 in
Specifications Pressure Rating
15000 psi | 1034.20 bar
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
