High Lift Flange Weld Test Plug - 151 Series 0.05"
High Lift Flange Weld Test Plug - 151 Series 0.05"
SKU:HIG-93ff81
Enhance pipe testing efficiency with the 151 Series High Lift Flange Weld Test Plug, designed for seamless installation, testing, and monitoring with minimal water usage.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Lift Flange Weld Test Plug - 151 Series 0.05"
$129.99
Quantity: 1
Claim Your Seller Account
High Lift Flange Weld Test Plug - 151 Series 0.05"
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 151 Series High Lift Flange Weld Test Plug offers unmatched efficiency in pipe testing with its innovative 'High Lift' seal design providing superior clearance and expansion capabilities. This plug eliminates the need for grinding deep root penetrations, reducing expenses, downtime, and waste disposal issues. With a rugged construction, adjustable compression tube, and versatility to accommodate various pipe schedules, it ensures fast, easy installation, testing, and monitoring of downstream conditions with minimal water usage. Complying with ANSI B16.5 requirements, this plug is a reliable, cost-effective tool for welding, testing, and hydrostatic testing operations.

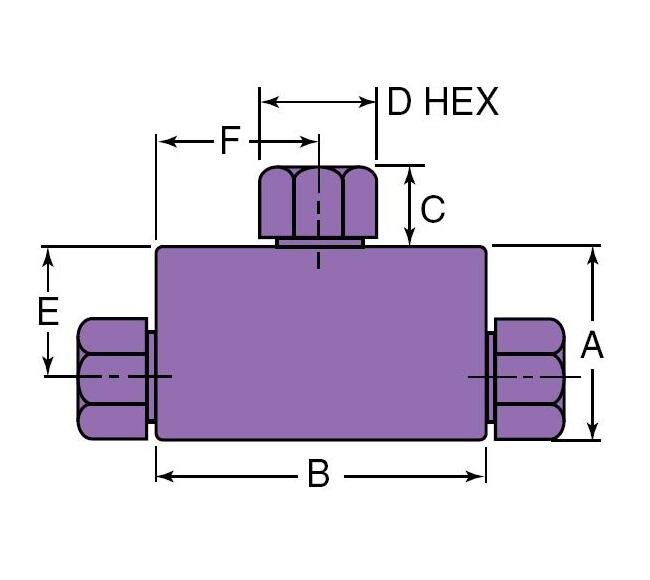

Product Specifications
Specifications A Height
1 in | 25.4 mm
Specifications Block Thickness
0.56 in | 14.27 mm
Specifications B Width
1.38 in | 34.93 mm
Specifications Connection Type
W125
Specifications C Height
0.31 in | 7.87 mm
Specifications D Hex
0.38 in | 9.65 mm
Specifications E Length
0.69 in | 17.45 mm
Specifications F Length
0.69 in | 17.45 mm
Specifications Minimum Opening
0.093 in | 2.36 mm
Specifications Outside Diameter Tube
3.18 mm | 1/8 in
Specifications Pressure Rating
15000 psi | 1034.20 bar
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
