The High Lift Flange Weld Test Plug from the 151 Series offers enhanced seal-to-pipe clearance of 0.07 in, exceeding industry standards for pipe testing. Designed for fast and efficient installation, this plug reduces downtime, waste disposal, and environmental liabilities. With rugged construction and versatile seal materials, it ensures a secure fit and easy monitoring of downstream pressure. Meet ANSI B16.5 requirements with ease using this reliable tool that streamlines weld testing processes.
Product Specifications

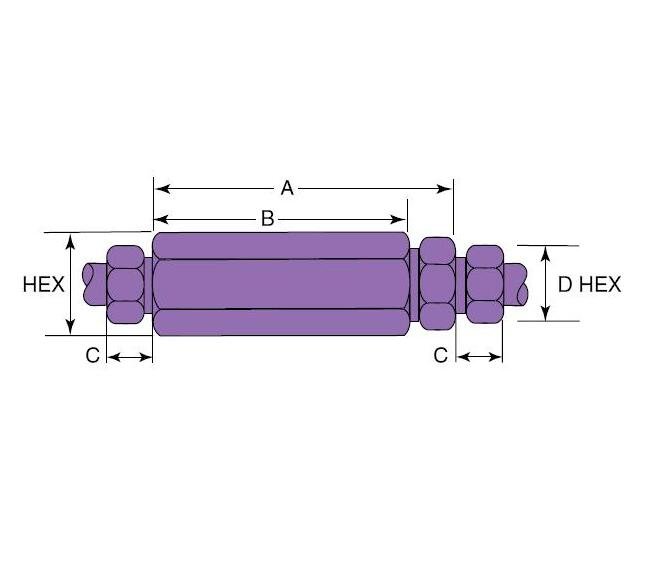

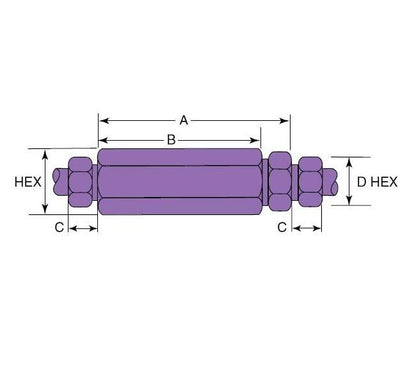

Specifications A Length
3.12 in | 79.25 mm
Specifications B Length
2.56 in | 65.02 mm
Specifications C Length
0.44 in | 11.18 mm
Specifications D Hex
0.63 in | 16.00 mm
Specifications Fits Connection Type
SW-250
Specifications Hex
0.81 in | 20.57 mm
Specifications Orifice
0.188 in | 4.78 mm
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Rated Cv
3
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
