High Lift Flange Weld Test Plug - 151 Series 0.11 in
High Lift Flange Weld Test Plug - 151 Series 0.11 in
SKU:HIG-29e38f
Revolutionary High Lift design for efficient testing and welding processes
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
High Lift Flange Weld Test Plug - 151 Series 0.11 in
$189.99
Quantity: 1
Claim Your Seller Account
High Lift Flange Weld Test Plug - 151 Series 0.11 in
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Lift Flange Weld Test Plug from the 151 Series offers a revolutionary design for seamless testing and welding operations. With a unique 'High Lift' seal design allowing greater seal to pipe clearance, this plug eliminates the need for grinding deep root penetrations. It facilitates easy passage over weld penetrations, reducing downtime and expenses. Perfect for monitoring downstream conditions, isolating and purging weld areas, and hydro testing weld joints to ANSI B16.5 standards, this plug is a versatile and cost-effective tool for industrial applications.

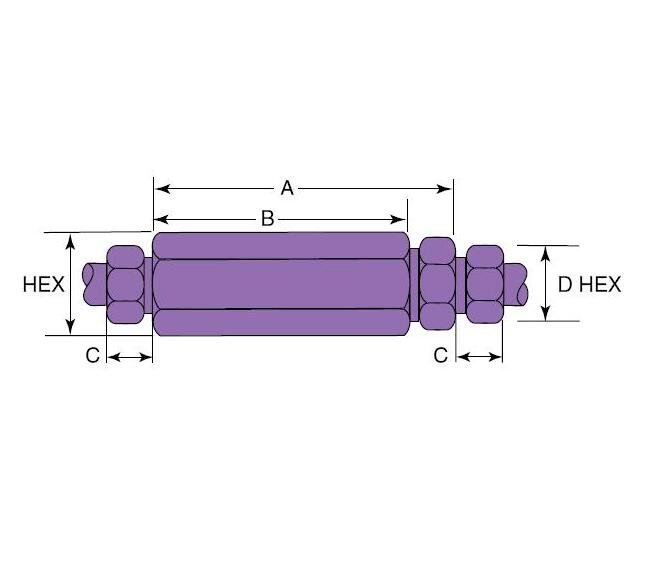

Product Specifications
Specifications A Length
2.25 in | 57.15 mm
Specifications B Length
1.88 in | 47.75 mm
Specifications C Length
0.31 in | 7.87 mm
Specifications D Hex
0.5 in | 12.70 mm
Specifications Fits Connection Type
W125
Specifications Hex
0.63 in | 15.88 mm
Specifications Orifice
0.094 in | 2.39 mm
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Rated Cv
0.15
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
