High Lift Flange Weld Test Plug - 151 Series 0.11 in
High Lift Flange Weld Test Plug - 151 Series 0.11 in
SKU:HIG-7d1a97
Revolutionary High Lift Flange Weld Test Plug for efficient welding and testing processes
Regular price
$169.99
Regular price
Sale price
$169.99
Unit price
per
Initiate Order
High Lift Flange Weld Test Plug - 151 Series 0.11 in
$169.99
Quantity: 1
Claim Your Seller Account
High Lift Flange Weld Test Plug - 151 Series 0.11 in
$169.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Lift Flange Weld Test Plug from the 151 Series offers a revolutionary design for seamless welding and testing processes. With enhanced seal clearance and expansion capabilities, this plug eliminates the need for grinding out deep root penetrations, saving time and reducing costs. It enables monitoring downstream conditions, isolating weld areas, purging, welding, and hydro testing to ANSI B16.5 standards with efficiency. Featuring fast installation, adjustable seal depth, and low water requirements, this plug is a versatile, environmentally-friendly solution suitable for various pipe schedules and flange classes.

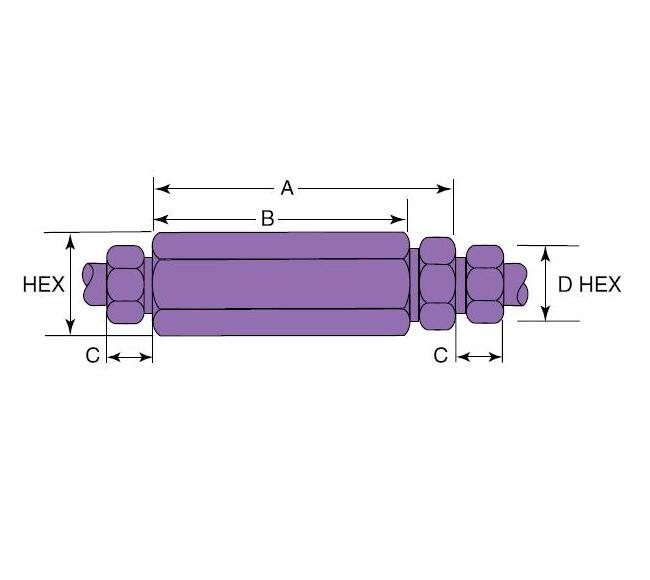

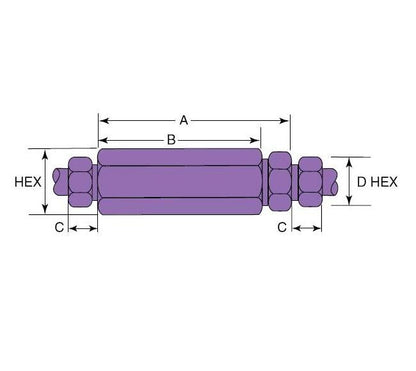

Product Specifications
Specifications A Length
4.18 in | 106.17 mm
Specifications B Length
3.50 in | 88.90 mm
Specifications C Length
0.53 in | 13.46 mm
Specifications D Hex
0.93 in | 23.62 mm
Specifications Fits Connection Type
SW500
Specifications Hex
1.38 in | 35.05 mm
Specifications Orifice
0.375 in | 9.53 mm
Specifications Pressure Rating
10000 psi | 689.46 bar
Specifications Rated Cv
3.40
Specifications Tubing Engagement Depth
0.81 in | 20.6 mm
