High Lift Flange Weld Test Plug - 151 Series, 0.11 in Clearance

Name: High Lift Flange Weld Test Plug - 151 Series, 0.11 in Clearance
Brand: Parker / Autoclave Engineers
SKU: HIG-7ff9c9
Price: 129.99 USD
Availability: OutOfStock

SKU:HIG-7ff9c9

High Lift Flange Weld Test Plug for efficient pipe testing & maintenance

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 151 Series High Lift Flange Weld Test Plug is designed for steam, sniff, purge, weld, and test applications. With a 'High Lift' seal design providing greater seal to pipe clearance and higher seal expansion, this plug easily passes over weld penetrations, eliminating the need for grinding. Fast and easy installation, robust construction, and improved seal-to-pipe clearance make this plug ideal for pipe repairs, retrofits, and weld joint hydro testing to ANSI B16.5 standards. Reduce downtime, expenses, and environmental impact with this versatile tool.

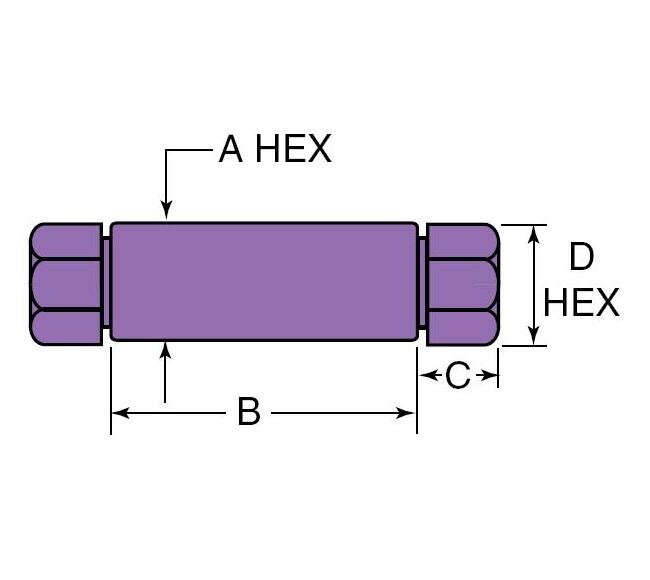

Product Specifications

Specifications A Height

0.5 in | 12.7 mm

Specifications B Width

1.38 in | 34.93 mm

Specifications Connection Type

W125

Specifications C Height

0.31 in | 7.87 mm

Specifications D Hex

0.38 in | 9.65 mm

Specifications Minimum Opening

0.093 in | 2.36 mm

Specifications Outside Diameter Tube

3.18 mm | 1/8 in

Specifications Pressure Rating

15000 psi | 1034.20 bar

Specifications Tubing Engagement Depth

0.47 in | 11.9 mm
