High Lift Flange Weld Test Plug - 151 Series (0.13 in)

Name: High Lift Flange Weld Test Plug - 151 Series (0.13 in)
Brand: Parker / Autoclave Engineers
SKU: HIG-14f13a
Price: 149.99 USD
Availability: OutOfStock

SKU:HIG-14f13a

Streamline weld testing with the Petersen® High Lift Flange Weld Test Plug - Fast installation, ANSI B16.5 compliant

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 151 Series High Lift Flange Weld Test Plug by Petersen® is designed for efficient weld testing with its innovative 'High Lift' seal design that ensures greater seal to pipe clearance and high seal expansion. This plug eliminates the need for grinding out deep root penetrations, resulting in time and cost savings. Featuring fast installation, versatile seal materials, and rugged construction, it meets ANSI B16.5 requirements and offers a minimum 1.5:1 safety factor, making it ideal for institutional and government procurement needs.

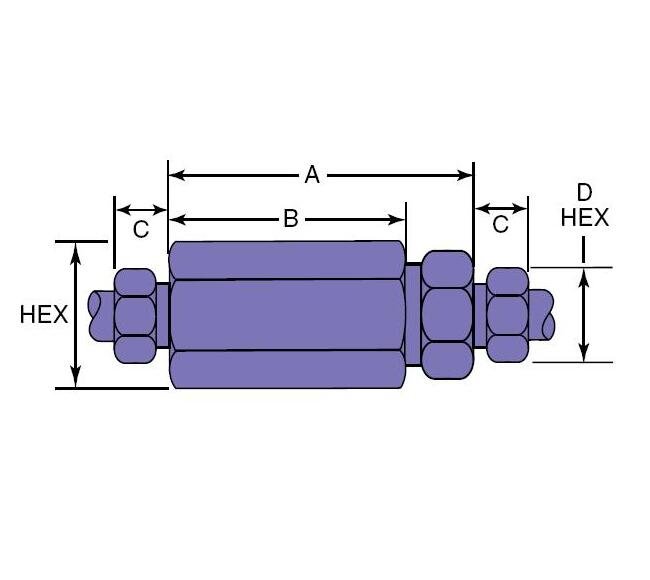

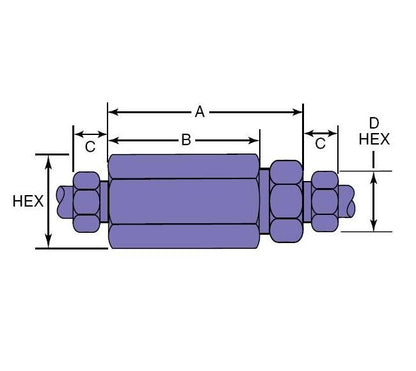

Product Specifications

Specifications A Length

4.18 in | 106.17 mm

Specifications B Length

3.50 in | 88.90 mm

Specifications Connection Size And Type

SW500

Specifications C Length

0.53 in | 13.46 mm

Specifications D Hex

0.93 in | 23.62 mm

Specifications Effective Filter Element Area

1.53 inÂ² | 987.09 mmÂ²

Specifications Hex

1.38 in | 35.05 mm

Specifications Micron Size

Specifications Orifice

0.438 in | 11.13 mm

Specifications Pressure Rating

10000 psi | 689.46 bar

Specifications Tubing Engagement Depth

0.81 in | 20.6 mm
