High Lift Flange Weld Test Plug - 151 Series
High Lift Flange Weld Test Plug - 151 Series
SKU:HIG-418adf
Efficient High Lift Flange Weld Test Plug for streamlined testing processes in institutional and government procurement.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Lift Flange Weld Test Plug - 151 Series
$129.99
Quantity: 1
Claim Your Seller Account
High Lift Flange Weld Test Plug - 151 Series
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Lift Flange Weld Test Plug from the 151 Series by Petersen® is designed for efficient steam, sniffing, purging, welding, and testing operations. With a unique 'High Lift' seal design allowing greater seal to pipe clearance and higher seal expansion, this plug eliminates the need for grinding out deep root penetrations during weld testing. It meets ANSI B16.5 requirements, streamlining the testing process and reducing expenses, downtime, and environmental liabilities. With rugged construction and versatile seal materials, this plug ensures fast and reliable weld joint testing, making it a cost-effective solution for institutional and government procurement needs.

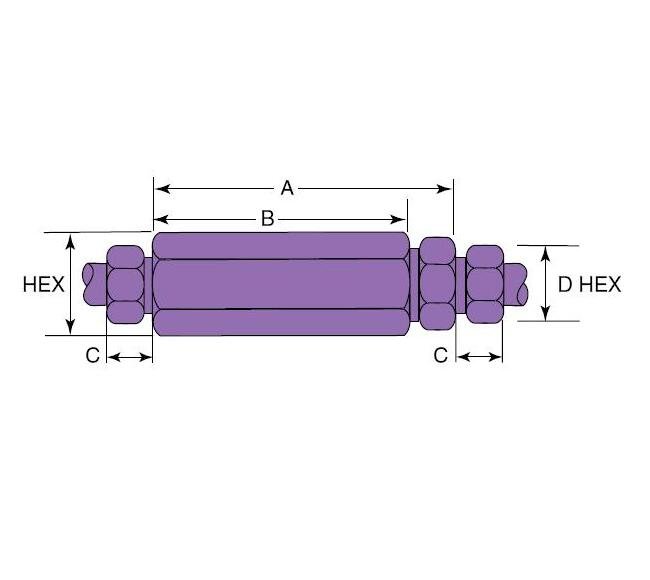

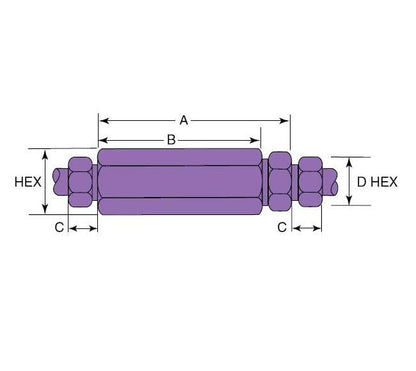

Product Specifications
Specifications A Length
4.18 in | 106.17 mm
Specifications B Length
3.50 in | 88.90 mm
Specifications C Length
0.53 in | 13.46 mm
Specifications D Hex
0.93 in | 23.62 mm
Specifications Fits Connection Type
SW500
Specifications Hex
1.38 in | 35.05 mm
Specifications Orifice
0.375 in | 9.53 mm
Specifications Pressure Rating
10000 psi | 689.46 bar
Specifications Rated Cv
3.40
Specifications Tubing Engagement Depth
0.81 in | 20.6 mm
