High Lift Flange Weld Test Plug - 151 Series
High Lift Flange Weld Test Plug - 151 Series
SKU:HIG-72a6aa
Achieve efficient weld testing with the 151 Series High Lift Flange Weld Test Plug. Monitor, isolate, purge, weld, and test with ease, saving time and resources.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
High Lift Flange Weld Test Plug - 151 Series
$249.99
Quantity: 1
Claim Your Seller Account
High Lift Flange Weld Test Plug - 151 Series
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 151 Series 0.11 Inch High Lift Flange Weld Test Plug by Petersen® is a game-changer for weld testing. With a 'High Lift' seal design allowing for greater seal-to-pipe clearance and higher expansion, this plug eradicates the need for grinding out root penetrations. Designed for efficiency, this plug enables monitoring downstream conditions, isolating and purging the weld area, and hydro testing weld joints to ANSI B16.5 requirements all with one tool. Save time, reduce costs, and minimize environmental impact with this versatile, rugged, and heavy-duty plug.
Product Specifications

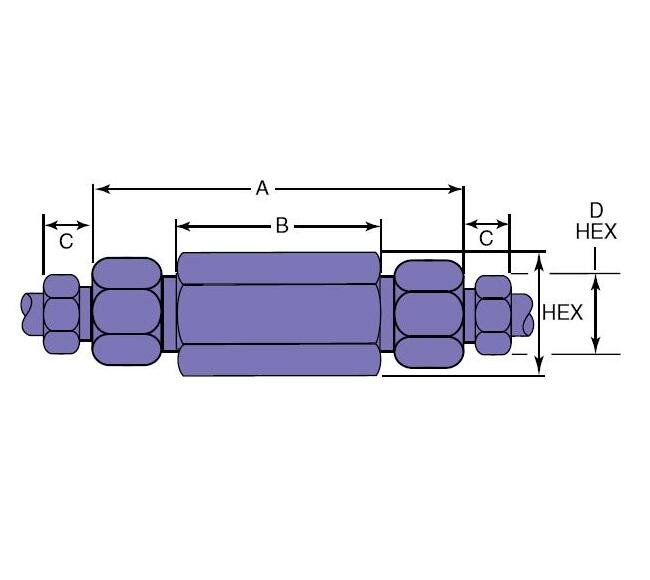

Specifications A Length
2.31 in | 58.67 mm
Specifications B Length
1.25 in | 31.75 mm
Specifications Connection Size And Type
W125
Specifications C Length
0.31 in | 7.87 mm
Specifications D Hex
0.5 in | 12.70 mm
Specifications Effective Filter Element Area
0.06 in² | 38.70 mm²
Specifications Hex
0.62 in | 15.74 mm
Specifications Micron Size
35/65
Specifications Orifice
0.094 in | 2.39 mm
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
