High Lift Flange Weld Test Plug - 151 Series
High Lift Flange Weld Test Plug - 151 Series
SKU:HIG-1bcacf
Versatile, rugged High Lift Flange Weld Test Plug for efficient welding and testing processes in compliance with ANSI B16.5 requirements.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Lift Flange Weld Test Plug - 151 Series
$89.99
Quantity: 1
Claim Your Seller Account
High Lift Flange Weld Test Plug - 151 Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Lift Flange Weld Test Plug from the 151 Series is a versatile and rugged tool designed for seamless welding and testing processes. Featuring a segmented compression tube for adjustable seal installation depth, this plug ensures improved Seal-to-Pipe Clearance, allowing for easy installation and removal, even in the presence of severe weld protrusion. With minimal water requirements, it reduces waste water while maintaining a 1.5:1 safety factor. Compliant with ANSI B16.5 requirements, this plug eliminates the need for blind flanging upstream, vacuum truck evacuation, and X-raying, saving time and expenses. Ideal for monitoring downstream conditions, isolating and purging weld areas, and hydrotesting joints, it is a reliable solution for efficient pipe repairs and retrofits.

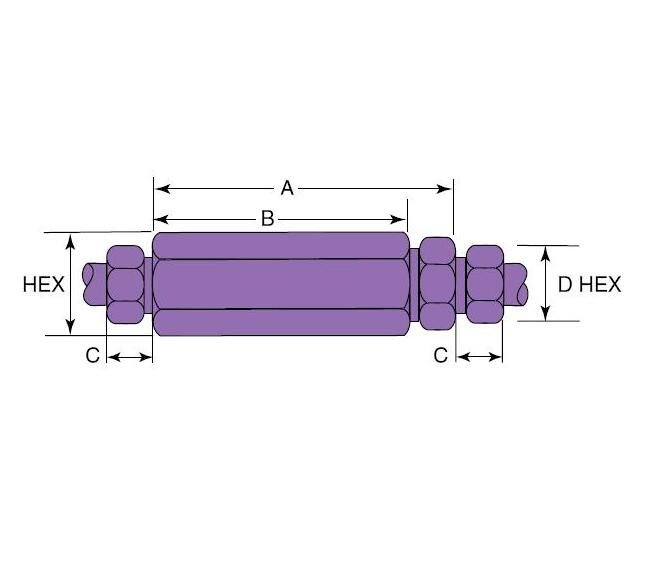

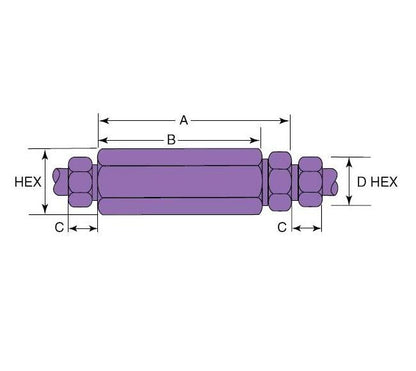

Product Specifications
Specifications A Length
3.18 in | 80.77 mm
Specifications B Length
2.56 in | 65.02 mm
Specifications C Length
0.44 in | 11.18 mm
Specifications D Hex
0.63 in | 16.00 mm
Specifications Fits Connection Type
SW250
Specifications Hex
0.81 in | 20.57 mm
Specifications Orifice
0.188 in | 4.78 mm
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Rated Cv
0.63
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
