High Lift Flange Weld Test Plug - 151 Series
High Lift Flange Weld Test Plug - 151 Series
SKU:HIG-bf0ebf
Efficiently weld test with the 151 Series High Lift Flange Weld Test Plug - fast, easy installation & testing, low water requirements, rugged construction.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Lift Flange Weld Test Plug - 151 Series
$129.99
Quantity: 1
Claim Your Seller Account
High Lift Flange Weld Test Plug - 151 Series
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 151 Series 0.11 Inch High Lift Flange Weld Test Plug by Petersen® is a versatile tool designed for efficient weld testing in pipe systems. With a High Lift seal design, it offers greater seal to pipe clearance, eliminating the need to grind out deep root penetrations. This plug allows for monitoring downstream conditions, isolation, purging, welding, and hydro testing, all in one. Its segmented compression tube enables adjustable seal installation depth, ensuring fast and easy installation and removal with improved Seal-to-Pipe clearance. Save time and money on pipe repairs and retrofits with this rugged and heavy-duty plug.

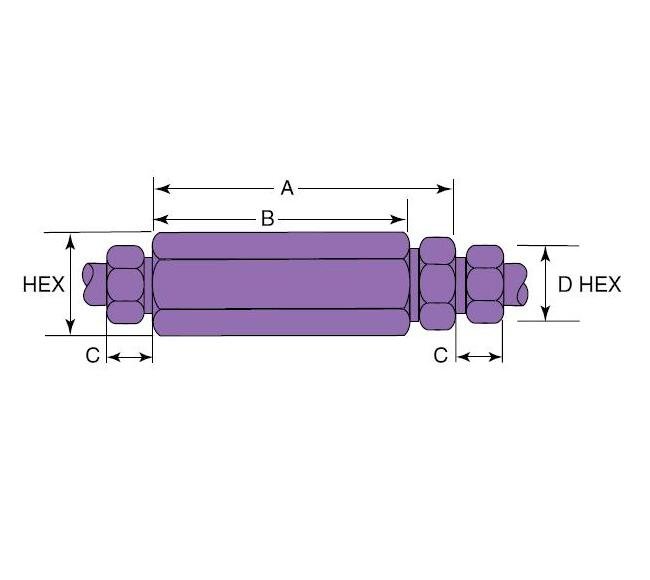

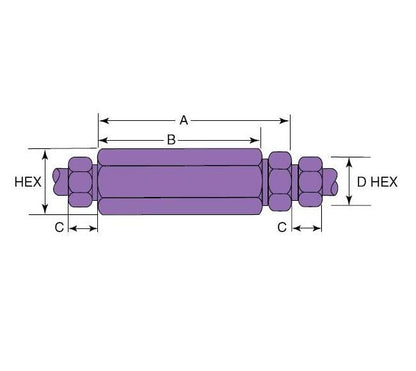

Product Specifications
Specifications A Length
3.56 in | 90.42 mm
Specifications B Length
3.00 in | 76.20 mm
Specifications C Length
0.53 in | 13.46 mm
Specifications D Hex
0.75 in | 19.05 mm
Specifications Fits Connection Type
SW375
Specifications Hex
1.00 in | 25.40 mm
Specifications Orifice
0.250 in | 6.35 mm
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Rated Cv
1.70
Specifications Tubing Engagement Depth
0.75 in | 19.1 mm
