High Lift Flange Weld Test Plug 151 Series

Name: High Lift Flange Weld Test Plug 151 Series
Brand: Parker / Autoclave Engineers
SKU: HIG-390008
Price: 349.99 USD
Availability: OutOfStock

SKU:HIG-390008

Efficient, versatile, and cost-saving High Lift Flange Weld Test Plug for precise weld testing and downstream monitoring.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The High Lift Flange Weld Test Plug 151 Series by Petersen® offers unmatched efficiency in weld testing, purging, and monitoring downstream conditions. With a seal to pipe clearance of 0.07 inches, this plug ensures easy installation and removal, even with severe weld protrusions, reducing downtime and expenses associated with conventional weld testing. Compliance with ANSI B16.5 requirements guarantees reliable performance, while the rugged construction and versatile design accommodate various pipe schedules. Save time and money with this rock-solid tool that minimizes environmental liabilities.

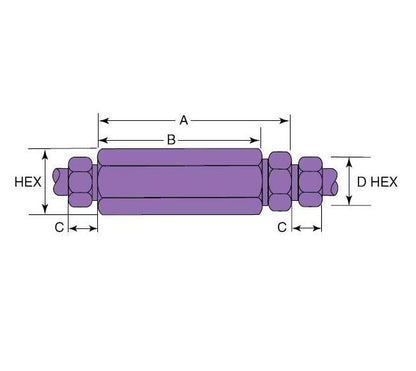

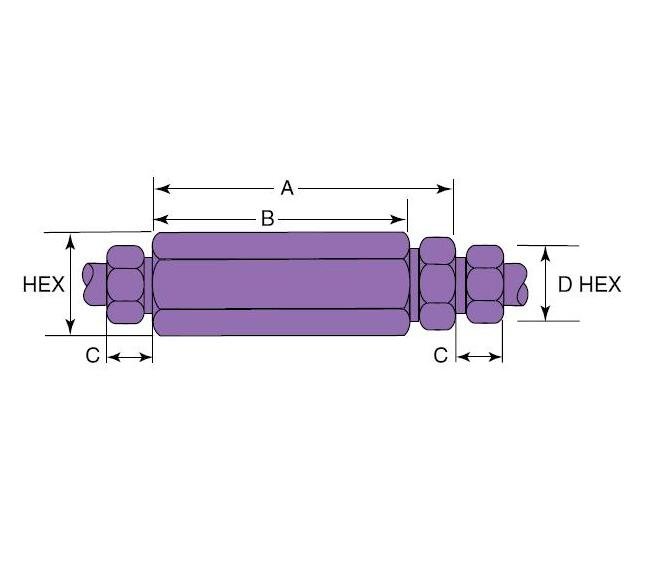

Product Specifications

Specifications A Length

4.18 in | 106.17 mm

Specifications B Length

3.50 in | 88.90 mm

Specifications C Length

0.53 in | 13.46 mm

Specifications D Hex

0.93 in | 23.62 mm

Specifications Fits Connection Type

SW500

Specifications Hex

1.38 in | 35.05 mm

Specifications Orifice

0.375 in | 9.53 mm

Specifications Pressure Rating

10000 psi | 689.46 bar

Specifications Rated Cv

0.212

Specifications Tubing Engagement Depth

0.81 in | 20.6 mm
