The High Lift Flange Weld Test Plug from the 151 Series is a cutting-edge solution designed to streamline pipe welding and testing processes. Featuring a 'High Lift' seal design for enhanced pipe clearance and seal expansion, this plug eliminates the need for grinding out deep root penetrations. With the ability to monitor downstream conditions, isolate and purge the weld area, perform the weld, and hydro test according to ANSI B16.5 requirements all with a single tool, this plug reduces expenses, downtime delays, and waste disposal issues associated with traditional flange-to-pipe weld testing. Its fast and easy installation, segmented compression tube for seal depth adjustment, and versatility across different pipe schedules make it a go-to choice for efficient and cost-effective pipe repairs and retrofits.

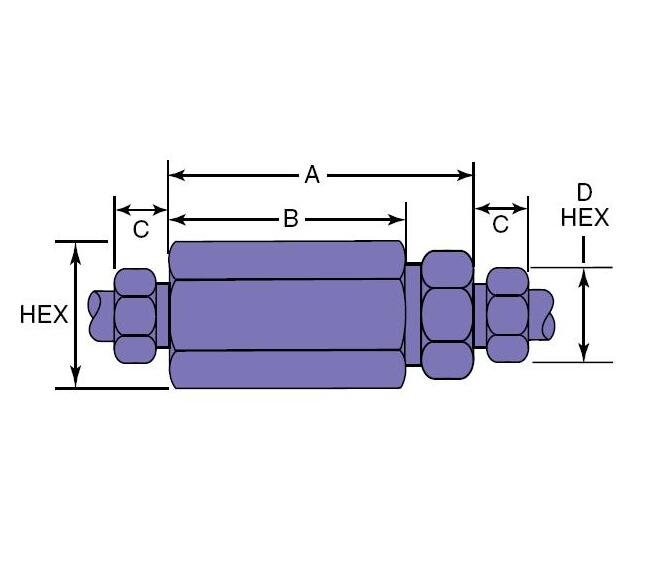

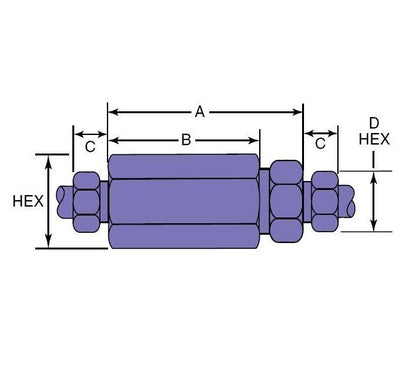

Product Specifications
Specifications A Length
4.18 in | 106.17 mm
Specifications B Length
3.50 in | 88.90 mm
Specifications Connection Size And Type
SW500
Specifications C Length
0.53 in | 13.46 mm
Specifications D Hex
0.93 in | 23.62 mm
Specifications Effective Filter Element Area
1.53 in² | 987.09 mm²
Specifications Hex
1.38 in | 35.05 mm
Specifications Micron Size
65
Specifications Orifice
0.438 in | 11.13 mm
Specifications Pressure Rating
10000 psi | 689.46 bar
Specifications Tubing Engagement Depth
0.81 in | 20.6 mm
