High Lift Flange Weld Test Plug - 151 Series
High Lift Flange Weld Test Plug - 151 Series
SKU:HIG-8be026
Enhance welding and testing efficiency with the 151 Series High Lift Flange Weld Test Plug. Easy installation, reduced downtime, and ANSI B16.5 compliant.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Lift Flange Weld Test Plug - 151 Series
$89.99
Quantity: 1
Claim Your Seller Account
High Lift Flange Weld Test Plug - 151 Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 151 Series 0.13 Inch High Lift Flange Weld Test Plug is a versatile, time-saving tool for welding and testing applications. With a unique 'High Lift' seal design, this plug provides superior seal to pipe clearance and expansion, eliminating the need for grinding out deep root penetrations. It allows easy passage over weld penetration, reducing downtime delays and waste disposal issues. This plug meets ANSI B16.5 requirements, offers fast installation, and requires minimal water usage, ensuring efficiency and cost-effectiveness in every use.

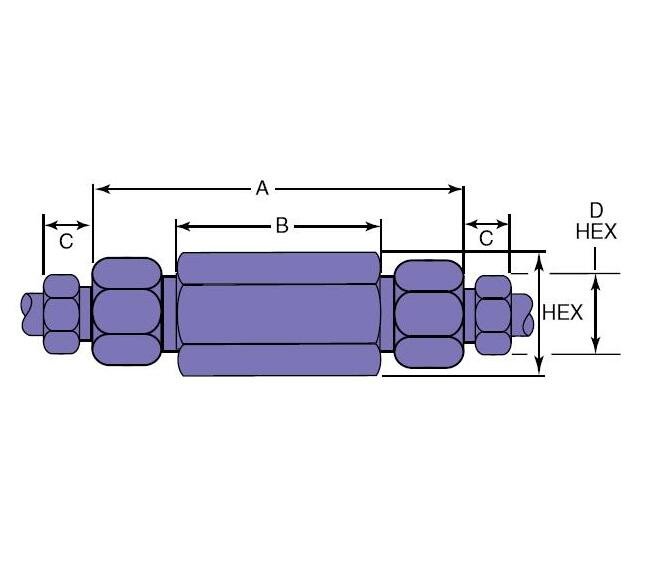

Product Specifications
Specifications A Length
2.94 in | 75.56 mm
Specifications B Length
1.68 in | 42.67 mm
Specifications Connection Size And Type
SW375
Specifications C Length
0.53 in | 13.46 mm
Specifications D Hex
0.75 in | 19.05 mm
Specifications Effective Filter Element Area
0.15 in² | 96.77 mm²
Specifications Hex
1.00 in | 25.40 mm
Specifications Micron Size
5/10
Specifications Orifice
0.125 in | 3.18 mm
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Tubing Engagement Depth
0.75 in | 19.1 mm
