High Lift Flange Weld Test Plug - 151 Series
High Lift Flange Weld Test Plug - 151 Series
SKU:HIG-b41b42
Revolutionize weld testing with the 151 Series High Lift Flange Weld Test Plug by Petersen®. Fast installation, low water requirements, and ANSI B16.5 compliance for efficient, cost-effective testing.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
High Lift Flange Weld Test Plug - 151 Series
$189.99
Quantity: 1
Claim Your Seller Account
High Lift Flange Weld Test Plug - 151 Series
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 151 Series 0.04 Inch High Lift Flange Weld Test Plug by Petersen® revolutionizes flange-to-pipe weld testing with its innovative 'High Lift' seal design. Featuring greater seal to pipe clearance and higher seal expansion, this plug effortlessly passes over weld penetration, eliminating the need for grinding deep root penetrations. With a maximum test pressure of 1125 psi, this rugged, versatile plug allows for fast, easy installation and testing, reducing downtime delays and waste disposal issues. Compliant with ANSI B16.5 requirements, it offers improved seal-to-pipe clearance, low water requirements, and a minimum 1.5:1 safety factor.

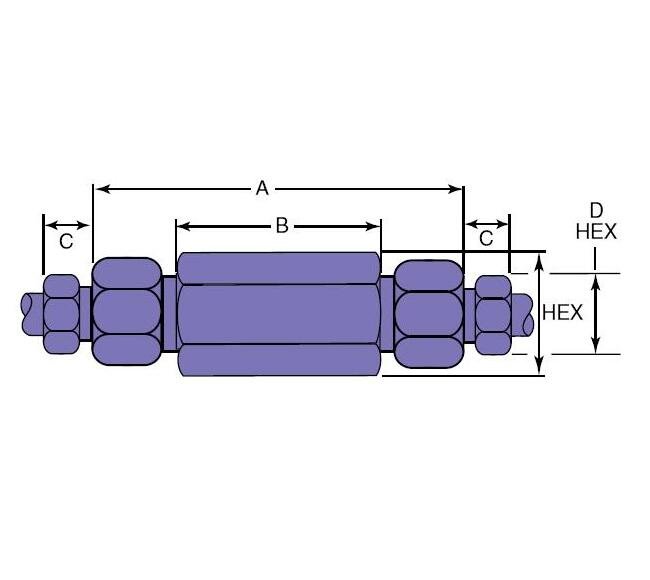

Product Specifications
Specifications A Length
3.56 in | 90.42 mm
Specifications B Length
1.94 in | 49.27 mm
Specifications Connection Size And Type
SW500
Specifications C Length
0.53 in | 13.46 mm
Specifications D Hex
0.93 in | 23.62 mm
Specifications Effective Filter Element Area
0.25 in² | 161.29 mm²
Specifications Hex
1.18 in | 29.97 mm
Specifications Micron Size
35/65
Specifications Orifice
0.188 in | 4.78 mm
Specifications Pressure Rating
10000 psi | 689.46 bar
Specifications Tubing Engagement Depth
0.81 in | 20.6 mm
