High Lift Flange Weld Test Plug - Series 151 - 0.11 Inch
High Lift Flange Weld Test Plug - Series 151 - 0.11 Inch
SKU:HIG-132414
Efficient High Lift Flange Weld Test Plug for fast, precise weld testing and reduced downtime. Suitable for ANSI B16.5 requirements.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
High Lift Flange Weld Test Plug - Series 151 - 0.11 Inch
$149.99
Quantity: 1
Claim Your Seller Account
High Lift Flange Weld Test Plug - Series 151 - 0.11 Inch
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Lift Flange Weld Test Plug, Series 151, offers unparalleled efficiency in weld testing operations for both consumer and institutional buyers. Featuring a patented 'High Lift' seal design with 0.11-inch clearance, this plug ensures easy passage over weld penetrations, eliminating the need for grinding. With robust construction and adaptable seal materials, the plug allows for fast and precise weld testing, reduced downtime, and minimal water usage, making it an ideal solution for meeting ANSI B16.5 requirements. Experience hassle-free pipe repairs, hydro testing, and monitoring of downstream conditions with this versatile and cost-effective tool.

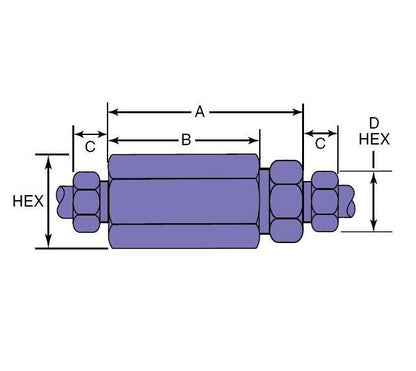

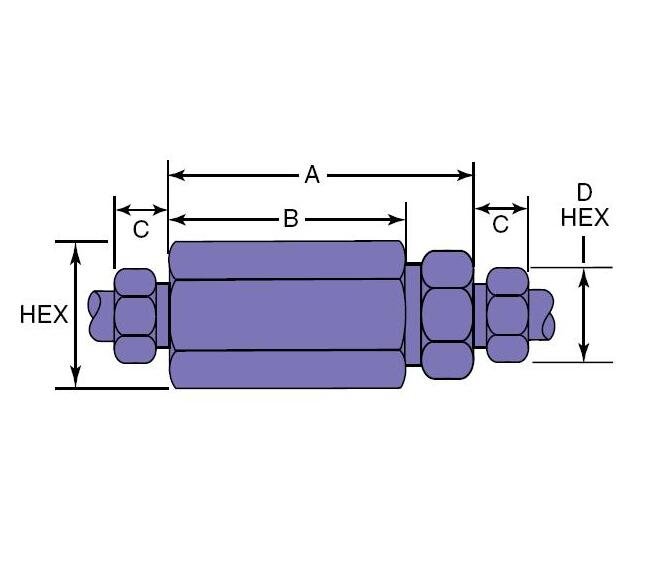

Product Specifications
Specifications A Length
3.18 in | 80.77 mm
Specifications B Length
2.56 in | 65.02 mm
Specifications Connection Size And Type
SW250
Specifications C Length
0.44 in | 11.17 mm
Specifications D Hex
0.63 in | 16.00 mm
Specifications Effective Filter Element Area
0.81 in² | 522.57 mm²
Specifications Hex
0.81 in | 20.57 mm
Specifications Micron Size
65
Specifications Orifice
0.188 in | 4.78 mm
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
