High Output DMN29 6DG Series DC Brush Motor with Extended Life
High Output DMN29 6DG Series DC Brush Motor with Extended Life
SKU:PER-c05e78
Experience peak performance with the DMN29 6DG Series DC Brush Motor's extended life and high output capabilities.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Output DMN29 6DG Series DC Brush Motor with Extended Life
$89.99
Quantity: 1
Claim Your Seller Account
High Output DMN29 6DG Series DC Brush Motor with Extended Life
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

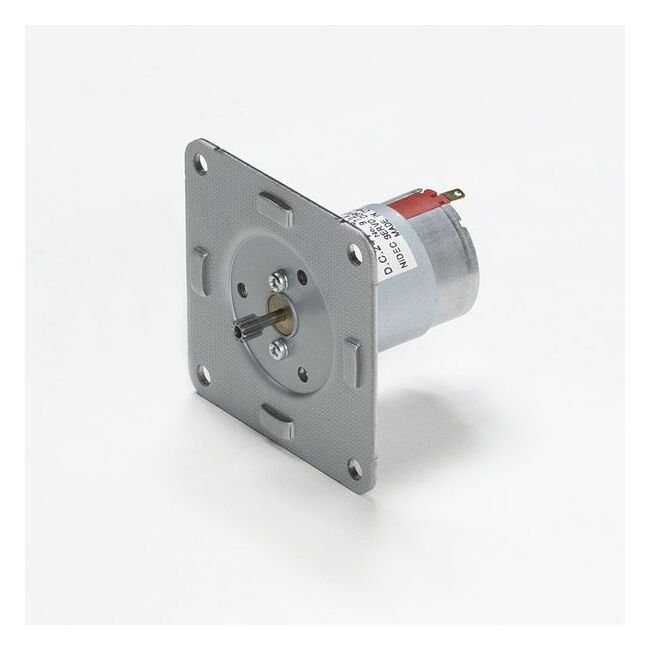

The DMN29 6DG Series DC Brush Motor offers unparalleled performance for continuous operation. With a design optimized for longevity, it can withstand over 1 million cycles of intermittent operation. Featuring high heat dissipation, robust construction, and large diameter output shaft with ball bearings, this motor delivers high strength and low noise levels. Additionally, it provides increased insulation with new resin brush holders and offers a wide selection of gear heads and reduction ratios. Ideal for both consumer and institutional buyers seeking top-tier quality and reliability.
Product Specifications
Additional Information 0
DMN29 6DG Series DC Brush Motors with Continuous Operation | DMN29 6DG Series DC Brush Motors with Continuous Operation (DMN29B6HPB) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Frame Size
61 x 61 mm | 1.949 in
Specifications Gear Ratio
300
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6mm tapped holes.Gearboxes with 4.5 mm diameter mounting holes are available from stock.When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN29B6HP? (Pinion shaft motor)6DG_(Gearbox)Gearboxes with M4 x 6 mm tapped mounting holes are available on request.When ordering, please write the combine motor and gearbox model, as in the following example : DMN29B6H( )_Enter the required reduction ration in ( )Enter the required voltage A or B in the _Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
139 oz·in | 0.98 N·m
Specifications Series
DMN29
Specifications Speed
13.9 r/min
Specifications Voltage Dc
12 V
Specifications Weight
350 g | 0.77 lb
