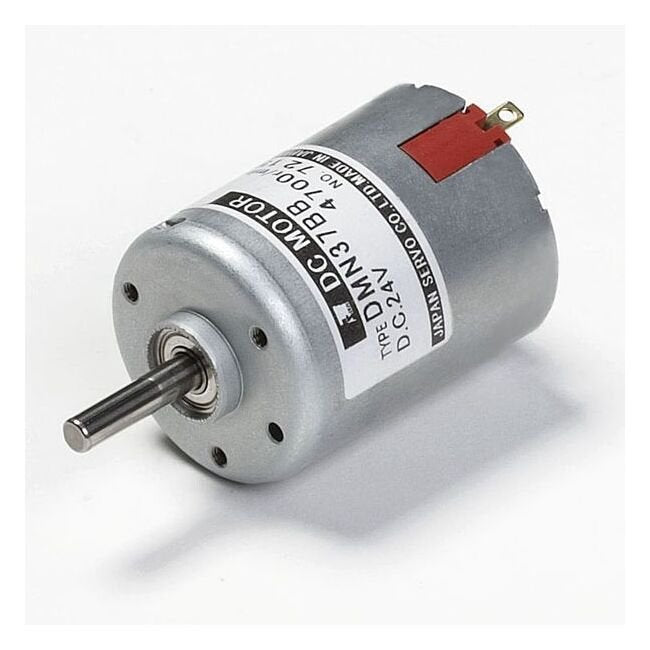

High Output DMN37 Series DC Brush Motors
High Output DMN37 Series DC Brush Motors
SKU:PER-80c6c8
Experience durability, high output, and low noise with the DMN37 Series DC Brush Motors.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Output DMN37 Series DC Brush Motors
$89.99
Quantity: 1
Claim Your Seller Account
High Output DMN37 Series DC Brush Motors
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN37 Series DC Brush Motors are engineered for exceptional durability and performance, with an intermittent operation capability exceeding 1 million cycles. Featuring an optimized brush design for extended lifespan, these motors deliver a continuous operating life of 3000 hours. With high heat dissipation and resistance, they achieve superior output, while the robust construction and large diameter output shaft ensure high radial load capacity. The motors also boast low noise operation and increased insulation thanks to innovative resin brush holders. Choose from a wide selection of gear heads and reduction ratios to suit diverse requirements, including options with magnetic revolution sensors and noise filters.
Product Specifications
Additional Information 0
Connection Diagram | Magnectic Type Revolution Sensor | Motor Selection Guide | Optical Type Revolution Sensor
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Current No Load
0.25 A
Specifications Current Rating
1010 mA | 1.01 A
Specifications Diameter
1.102 in | 28 mm
Specifications L1
53.2 mm | 2.094 in
Specifications L2
47.5 mm | 1.870 in
Specifications Note
Intermittent ratings are given for DMN37JB. (DUTY50%)
Specifications Product Type
DC Brush Motor
Specifications Rated Output
7.2 W
Specifications Rated Speed
4700 r/min
Specifications Rated Torque
14.7 mN·m | 2.09 oz·in
Specifications Series
DMN37
Specifications Speed No Load
5500 r/min
Specifications Stall Torque
98 mN·m | 13.89 oz·in
Specifications Voltage Dc
12 V
Specifications Weight
180 g | 0.40 lb
Torque Curve 0
