High-Performance 170mm Wavelength F-Theta Lens

Name: High-Performance 170mm Wavelength F-Theta Lens
Brand: Shanghai Optics
SKU: STO-73d1d5
Price: 349.99 USD
Availability: OutOfStock

SKU:STO-73d1d5

Achieve precise laser imaging with our high-performance 170mm F-Theta Lens.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

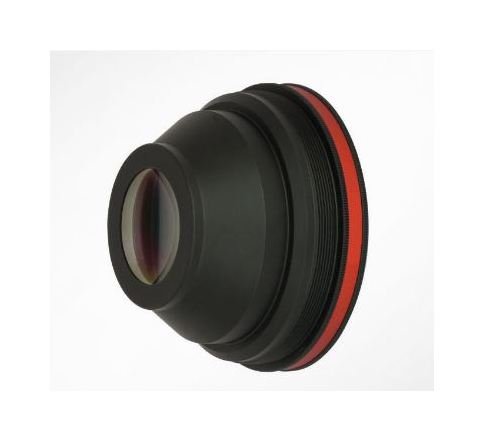

The SO-FT-090-170 Stock F-Theta Lens is a precision-engineered optical component designed for exceptional performance in laser scanning systems. With a wavelength range of 355/635 nm and an effective focal length of 170mm, this lens delivers crisp and clear imaging with a scan field of 90x90mm. The lens features M85x1 mounting threads, ensuring secure and stable installation. Its compliant design meets stringent industry standards, making it ideal for scientific, medical, and industrial applications.

Product Specifications

Specifications Beam Diameter

6 mm

Specifications Effective Focal Length

170 mm

Specifications Flange Distance

203.71 mm

Specifications M1 M2 Distance

13 mm

Specifications M2 Lens Center

28.55 mm

Specifications M2 Mountingthread

36.3 mm

Specifications Mounting Threads

M85Ã1

Specifications Scan Angle

Â±21.5 Âº

Specifications Scan Field

90*90 mm

Specifications Spot Size Diameter Center Edge

14.2-14.6 Âµm

Specifications Wavelength

355/635 nm

Specifications Working Distance

106.71 mm

High-Performance 170mm Wavelength F-Theta Lens
