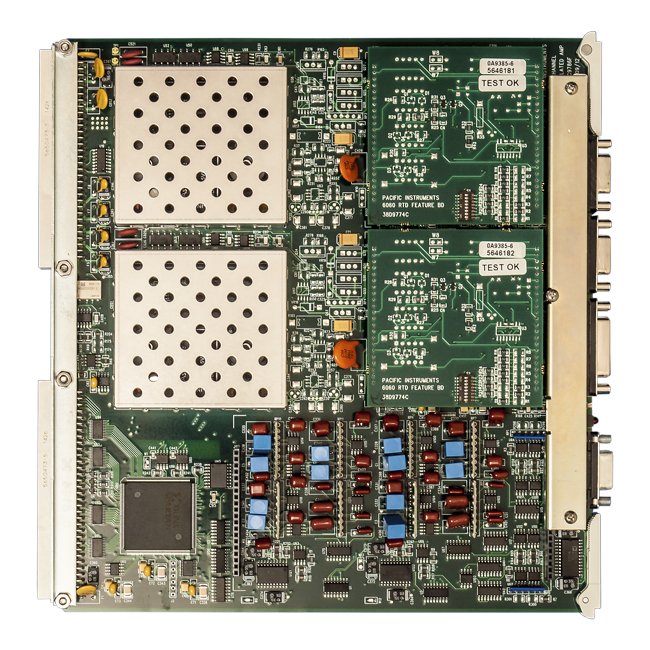

Experience precise data acquisition with the High-Performance 2-Channel Analog Instrumentation Module. With isolated inputs up to 300 Volts, programmable gains of 1 to 5,000, and dual buffered 10V analog outputs, this module ensures accurate measurements in industrial settings. Featuring automatic zero calibration, programmable low-pass filters, and a sample rate of up to 200kS/s per channel, it delivers reliable results with unparalleled flexibility for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Amplifier Bandwidth
50 kHz (-3 dB) for gains 1 to 1,000, 20 kHz (-3 dB) for gains above 1,000.
Amplifier Bandwidth Hf
100 kHz (-3 dB) for gains 1 to 1,000, 50 kHz (-3 dB) for gains above 1,000.
Amplifier Cm Voltage
±300 Volts operating.
Amplifier Common Mode
80 dB plus gain in dB to 120 dB for balance input and 110 dB for a 350 Ohm source unbalanced, ±300 Volts, DC to 60Hz.
Amplifier Gain
Programmable 1 to 5000, in 1, 2, 3, 5 steps, with ±0.05% accuracy.
Amplifier Gain Stability
±0.01% for 30 days, ±0.004%/ºC.
Amplifier Linearity
±0.01% for gains < 1,000, ±0.02% for gain 1,000 and higher.
Amplifier Monitor
Output is read by a program instruction. Resolution is ±0.003%.
Amplifier Noise 10 Khz
2.0 µV RTI plus 0.3 mV RTO, RMS.
Amplifier Output
Two ±10 Volt full scale buffered outputs. Each may be program selected for filtered or wideband response.
Amplifier Overload Recovery
120 µS to within ±0.1% for a 10 times overload to ±10 Volts.
Amplifier Slew Rate
5 V/µS
Amplifier Source Current
±25 nA, ±0.05 nA/ºC
Amplifier Zero
Automatic zero to ±2 µV RTI or ±1.0 mV RTO whichever is greater.
Amplifier Zero Stability
±1 µV/°C RTI, ±0.2 mV/°C RTO or (±1 µV RTI, ±0.2 mV RTO) /°C
Calibration Voltage Substitution
Alternate input for external calibration source. Programmable 1, 0.1 and 0.01, attenuation with ±0.02% accuracy. Attenuator output may be connected to bus for external monitoring.
Calibration Zero Calibration
Amplifier input disconnected and shorted for zero calibration.
Digitizer Alarms
Two alarms each with upper and lower limits that are programmable from negative to positive full scale. Limits checked on each ADC sample.
Digitizer Continuity Digitizer
Monotonic to 15 bits.
Digitizer Digitizer Linearity
±1-1/2 LSB (±0.004%)
Digitizer Rate
Programmable up to 200 kS/s per channel.
Digitizer Resolution
16-bits, two's complement output.
Digitizer Sample
±50 ns channel-to-channel time correlation.
Filter Other
Other filter characteristics and cut offs are available.
Filter Programmable Filter
6060: 4-Pole Bessel, continuously programmable 4 Hz to 10 kHz. | 6060HF: 4-Pole Bessel, continuously programmable 10 Hz to 20 kHz.
Filter Standard Filter
6060: 4-Frequency 6-Pole Bessel with 150 Hz, 625 Hz, 2.5 kHz, 10 kHz and wideband. | 6060HF: 4-Frequency 6-Pole Bessel with 300 Hz, 1.25 kHz, 5 kHz, 20 kHz and wideband.
Filter Type
4 Frequency Six-pole, low-pass Bessel or continuously programmable 4-pole Bessel.
General Connectors
Inputs are 15-pin and outputs are 9-pin Type D.
General Mounting
Occupies one slot in Series 6000 enclosures.
General Operating Temperature
0 to +50 ºC
Input Configuration
2 channels, differential 2 wire plus shield.
Input Impedance
50 Megohms, shunted by 500 pF.
Input Protection
±50 Volts, differential and ±350 Volts common mode.
Input Range
±2 mV to ±10 Volts full scale.
Ordering Information Ordering Information
6065HF-PF10/20K-BE4 - 2-Ch Instrumentation Amp, 4-Pole PF 10Hz-20kHz Bessel. | 6065HF-PF4-BE6 - 2-Ch Instrumentation Amp, 4-Freq 6-Pole Bessel.
Overview Analog Bandwidth
50 kHz | 100 kHz
Overview Analog Output
Buffered Analog Output
Overview Excitation
None
Overview Filter
6-Pole
Overview Measurement Type
Instrumentation Amp
