High-Performance 4-Channel Bridge Strain Transducer Amplifier
High-Performance 4-Channel Bridge Strain Transducer Amplifier
SKU:INT-d2a10b
Experience precision measurement with our 4-channel transducer amplifier. Ideal for demanding applications.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
High-Performance 4-Channel Bridge Strain Transducer Amplifier
$1,299.99
Quantity: 1
Claim Your Seller Account
High-Performance 4-Channel Bridge Strain Transducer Amplifier
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

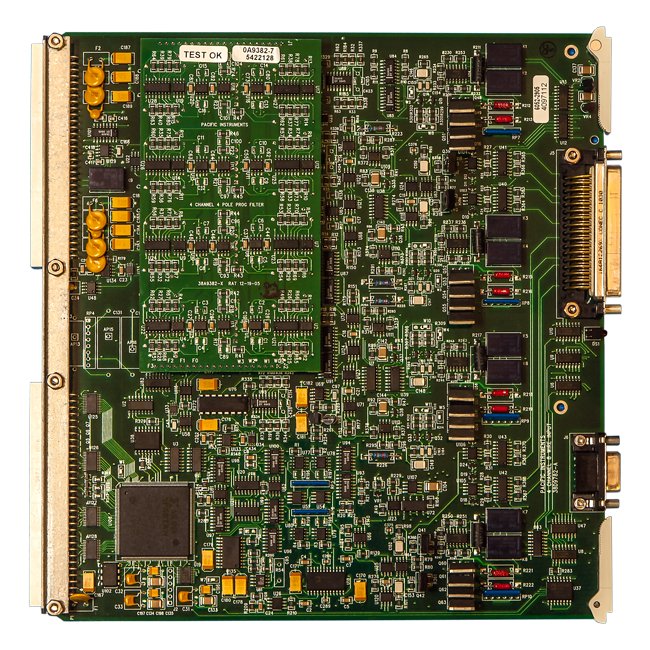

Meet the demands of precision measurement with our 4-channel strain/bidge transducer amplifier. This versatile device features programmable input configurations for quarter, half, and full bridge, customizable excitation, automatic zero and balance, gains up to 5,000 with 0.05% accuracy, and a high-speed model for up to 50kS/s per channel. With shunt and voltage calibration, buffered analog output, and programmable alarms, this amplifier is ideal for load control applications. Designed for institutional and government usage, this device offers reliable performance and flexibility for challenging environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Amplifier Bandwidth 6052
10 kHz (-3dB) or better
Amplifier Bandwidth 6052c
50 kHz (-3dB) for gains 1 to 1,000, 20 kHz (-3dB) for gains above 1,000
Amplifier Common Mode
74 dB plus gain in dB up to 106 dB, DC to 60 Hz for ±10 Volts.
Amplifier Gain
Programmable from 1 to 5,000 in 1, 2, 3, 5 steps with ±0.05% accuracy.
Amplifier Gain Stability
±0.01%, ±0.004%/ºC.
Amplifier Impedance
50 Megohms, shunted by 1,000 pF.
Amplifier Linearity Amplifier
±0.01% for gains < 1,000, ±0.02% for gains 1,000 and higher.
Amplifier Noise 10 Hz
0.1 µV RMS RTI plus 0.5 mV RMS RTO
Amplifier Noise Wideband
2 µV RMS RTI plus 0.5 mV RMS RTO
Amplifier Output
Buffered Analog Output, ±10 Volts full scale, wideband or filtered. Accuracy is ±0.05%.
Amplifier Protection
Instrumentation amplifier ±50 Volts differential and Common Mode. Bridge ±15 Volts Common Mode.
Amplifier Recovery
800 µS to ±0.1% for 10X overload to ±10 V.
Amplifier Slew Rate 6052
5 V/uS
Amplifier Source Current
±25 nA, ±0.01 nA/ºC
Amplifier Zero Amplifier
Automatic to ±1 µV RTI, ±0.5 mV RTO.
Amplifier Zero Stability
±5 µV RTI, ±1 mV RTO, ±1 µV/ºC RTI, ±0.2 mV/ºC RTO. Short term: ±2 µV RTI, ±0.4 mV RTO.
Calibration Shunt
Two steps shunt, internal or external connection, 174k Ohm 0.1% and 357k Ohm 0.1%
Calibration Voltage Substitution
Alternate input for external calibration source. Programmable attenuator with steps of 1, 0.1 and 0.01, ±0.02% accuracy. Output of the attenuator is provided for calibration.
Calibration Zero Calibration
Amplifier input disconnected and shorted.
Digitizer Alarms
Two alarms each with programmable upper and lower limits and persistence checked on each ADC sample.
Digitizer Continuity
Monotonic to 15 bits.
Digitizer Digitizer Linearity
±2 LSB (±0.006%)
Digitizer Resolution
16-bits, two's complement output.
Digitizer Sample Rate 6052
0 to 20 kS/s per channel
Digitizer Sample Rate 6052c
0 to 50 kS/s per channel
Excitationtransducer Power Current
50 mA limited to 70 mA.
Excitationtransducer Power Excitation Noise
200 µV peak-to-peak.
Excitationtransducer Power Monitor
Calibration mode applies excitation voltage to amplifier input.
Excitationtransducer Power Regulation
±0.01% for ±10% line and no-load to full-load using remote sensing.
Excitationtransducer Power Stability
±0.01%, ±0.005 %/ºC
Excitationtransducer Power Voltage Excitation
Programmable from 0-12 Volts in 1 Volt ±0.1% steps, with 3.3 mV resolution adjustment.
Filter Frequency 6052
Continuously programmable 4Hz to 5kHz, 1.25Hz resolution, 3% accuracy
Filter Frequency 6052c
Continuously programmable 10Hz to 20kHz
Filter Noise
0.5 mV RMS RTO
Filter Other
Other filter characteristics and cut offs available.
Filter Type 6052
Four or Six pole, low pass Butterworth
Filter Type 6052c
Four pole, low pass Bessel
Input Balance
Automatic by program control. Balance accuracy ±0.05% of range, ±1 mV RTO. Stability ±0.02% for 8 hours, ±0.005%/ºC. Range set by resistor up to 10 mV/V, 2 mV/V (for 350 Ohms) installed.
Input Configuration
4 channels, 2 to 8 wire with guard shield. Bridge configuration is programmable for 1/4, 1/2 and full bridge, 120 Ohm and 350 Ohm.
Overview Excitationtransducer Power
Voltage
