High Performance 5 HP Engine Driven Trash Pump
High Performance 5 HP Engine Driven Trash Pump
SKU:PRO-778b05
Powerful 5 HP Engine Driven Trash Pump with superior durability and high-performance capabilities for versatile applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
High Performance 5 HP Engine Driven Trash Pump
$899.99
Quantity: 1
Claim Your Seller Account
High Performance 5 HP Engine Driven Trash Pump
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

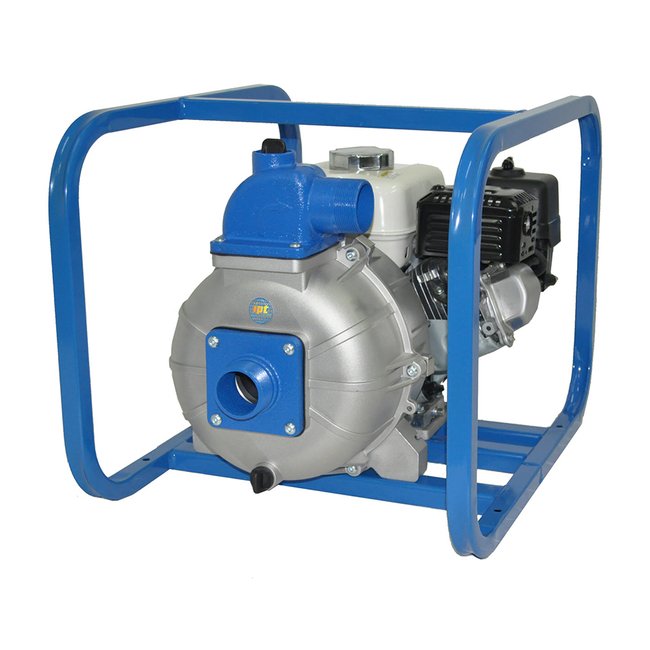

The American Machine and Tool Company's 2" 5 HP Engine Driven Trash Pump is a top-of-the-line solution for high-volume, self-priming trash pumping needs. Built with durable cast aluminum construction, cast iron wear parts, and featuring a cast iron impeller, this pump is designed to resist abrasion and ensure long-lasting performance. It comes equipped with features like built-in check valve, suction strainer, and a heavy-duty steel roll frame for added convenience and reliability. With a maximum flow of up to 185 GPM, a maximum head of 89 PSI, and the ability to handle solids up to 1.25 inches, this pump is ideal for various applications including fire protection, irrigation, and more. The one-tool serviceability makes maintenance easy, while the option for different engine configurations adds versatility to meet specific requirements.
Product Specifications
Curves 0

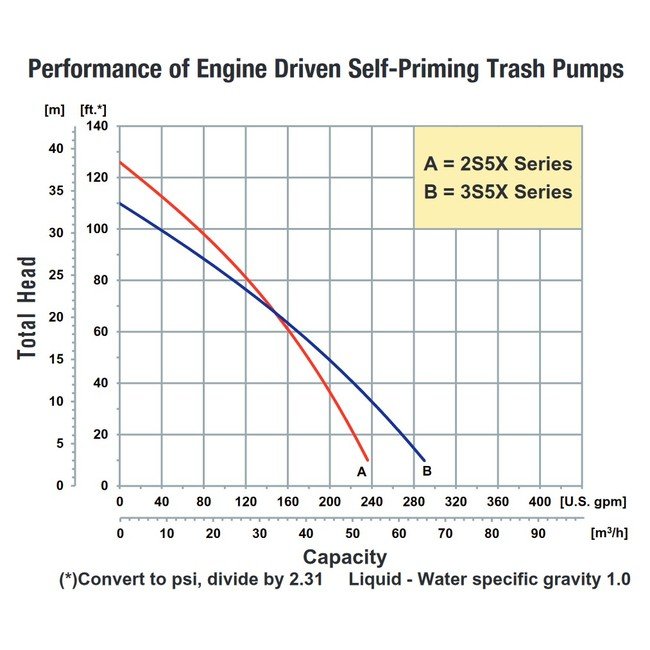

Performance Curves
Dimensions 0

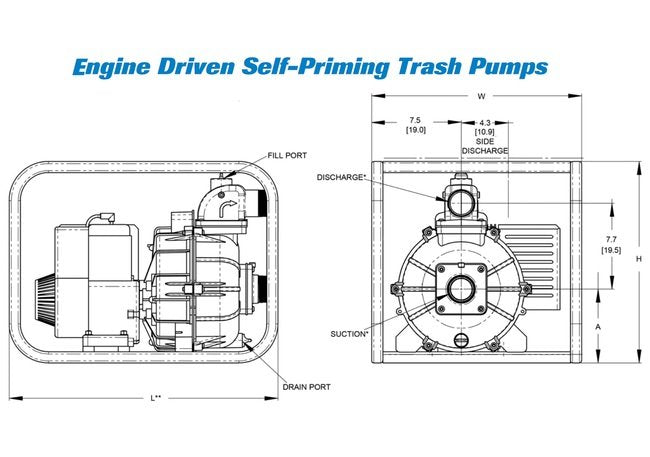

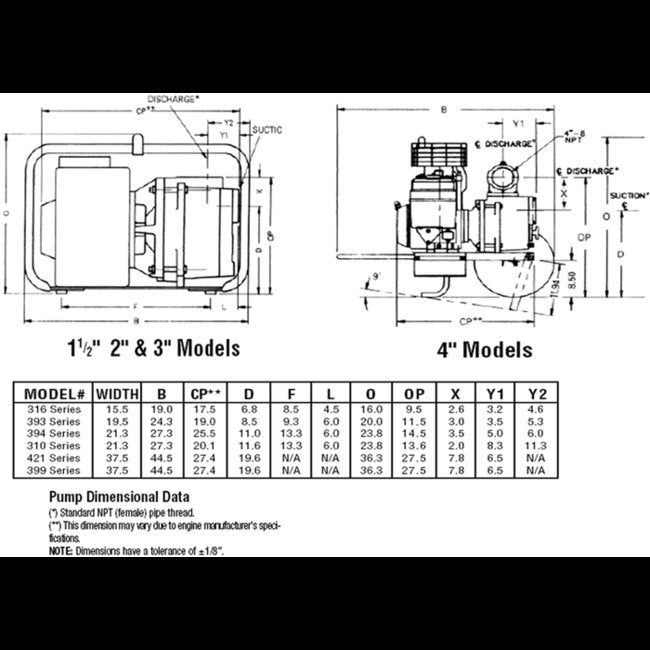

Dimensions
Specifications Driver
LCT® 208CC
Specifications Features
Cast Aluminum Construction with Cast Iron DiffusersEPDM/EPR Mechanical SealsOptional FKM Seal and Elastomers Available3" Cast Iron Suction & Discharge Male NPT Port SizesMaximum Flow up to 185 GPMMaximum Head up to 89 PSIMaximum Lift to 26 Ft.One Tool ServiceabilityUtilized for Fire Protection or IrrigationDischarge Port Rotates in 90° IncrementsEngine Options
Specifications Fuel Tank Capacity
0.71/2.7, not qt qt
Specifications Height
20 in | 505.46 mm
Specifications Length
24 Inch | 60.96 Centimeter | 2.00 ft | 24 in | 0.6096 m | 609.60 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Power
5 hp
Specifications Run Time
132.00 min min
Specifications Sku
AT2S5XLRSP
Specifications Solids Handling
1.25 in
Specifications Weight
40.82 Kilogram | 40.82 kg | 90 lbs
Specifications Width
20 Inch | 20 in | 0.4953 m | 1.63 ft | 495.30 mm
