High-Performance Aircraft Aluminum Rod Ends
High-Performance Aircraft Aluminum Rod Ends
SKU:ROD-f9e250
Premium Aircraft Aluminum Rod Ends for automotive and industrial applications. Exceptional durability and precision engineering.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High-Performance Aircraft Aluminum Rod Ends
$29.99
Quantity: 1
Claim Your Seller Account
High-Performance Aircraft Aluminum Rod Ends
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled durability and precision with our Aircraft Aluminum Rod Ends. Crafted from 6061-T6 Aluminum and 52100 Bearing Steel, these rod ends offer exceptional reliability in automotive vehicles, industrial machines, and various industries. With hard chrome plating, male/female and left/right variants, and meeting stringent industry standards, these rod ends ensure optimal performance under demanding conditions.
Ready to Grow Without Cash Flow Constraints?

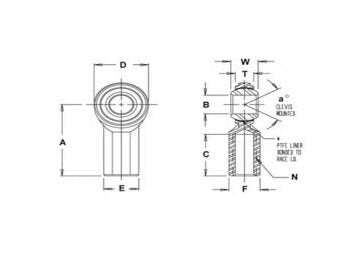

Product Specifications
Specifications Approx Weight
0.034 lbs
Specifications A Length 0015 0015
1.312 in
Specifications A Mis Angle Ref
16
Specifications Ball
0.500 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black
Specifications B Dia 00025 00005
0.2500 in
Specifications C Length 0062 0031
0.687 in
Specifications D Dia 0010 0010
0.750 in
Specifications Liner Material
Teflon Liner Available
Specifications N Thread Unf 3a
1/4-28
Specifications Race Material
Aluminum
Specifications Rod End Variants
ALA-4
Specifications Static Radial Load
2,592 lbs
Specifications Thread Type
Left
Specifications Type
Female
Specifications T Width
0.281 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.375 in
