High-Performance AX97 Series Power Shielded Inductors
High-Performance AX97 Series Power Shielded Inductors
SKU:IND-ebfb62
Slim and high-performing SMD power inductors with 470.0 µH inductance, ideal for laptops, converters, and communication devices.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
High-Performance AX97 Series Power Shielded Inductors
$12.99
Quantity: 1
Claim Your Seller Account
High-Performance AX97 Series Power Shielded Inductors
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

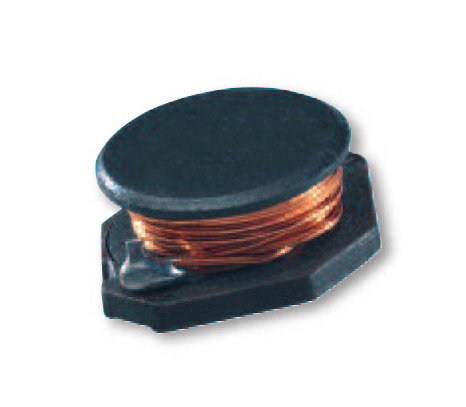

The AX97 Series SMD Power Shielded Inductors are designed to meet the demands of modern electronics with slim construction, low resistance, and excellent DC current characteristics. With an inductance of 470.0 µH, a maximum DC resistance of 1.5000 Ohm, and a current rating of 0.50 A, these inductors offer reliable performance. Ideal for laptop and notebook computers, DC/DC converters, portable communication equipment, and general-purpose applications, these inductors are versatile and efficient for various electronic devices.
Product Specifications
Applications 0
Laptop and Notebook Computers and PDAsDC/DC ConvertersPortable Communication EquipmentInductor for General Purpose Use
Specifications Current Rating
0.50 A
Specifications Dimension A
0.530 in | 13.46 mm
Specifications Dimension B
0.370 in | 9.40 mm
Specifications Dimension C
0.232 in | 5.90 mm
Specifications Dimension D
0.404 in | 10.26 mm
Specifications Dimension E
0.120 in | 3.05 mm
Specifications Dimension F
0.135 in | 3.43 mm
Specifications Inductance H 20
470.0 µH
Specifications Max Dc Resistance At 25
1.5000 Ohm
