High-Performance AX97 Series SMD Power Shielded Inductors
High-Performance AX97 Series SMD Power Shielded Inductors
SKU:IND-7dd40d
Slim, high-performance inductors with low resistance and optimal DC current characteristics for diverse electronic applications.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
High-Performance AX97 Series SMD Power Shielded Inductors
$12.99
Quantity: 1
Claim Your Seller Account
High-Performance AX97 Series SMD Power Shielded Inductors
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

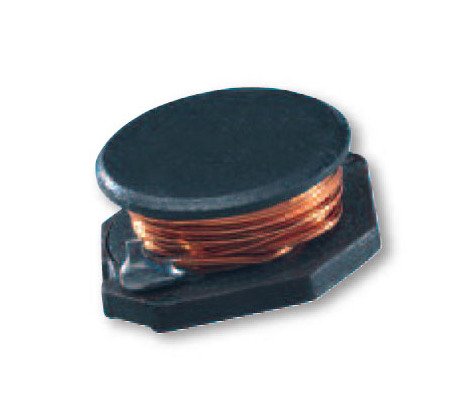

The AX97 Series SMD Power Shielded Inductors are designed for precision and efficiency in a slim form factor. With low resistance and exceptional DC current characteristics, these inductors offer reliable performance in demanding applications. Featuring an inductance of 68.0 µH ±20% and a max DC resistance of 0.200 Ohm at 25°C, they support a current rating of 1.80 A. Ideal for laptop computers, DC/DC converters, portable communication equipment, and general-purpose use, these inductors deliver optimal functionality in various electronic devices.
Product Specifications
Applications 0
Laptop and Notebook Computers and PDAsDC/DC ConvertersPortable Communication EquipmentInductor for General Purpose Use
Specifications Current Rating
1.80 A
Specifications Dimension A
0.530 in | 13.46 mm
Specifications Dimension B
0.370 in | 9.40 mm
Specifications Dimension C
0.232 in | 5.90 mm
Specifications Dimension D
0.404 in | 10.26 mm
Specifications Dimension E
0.120 in | 3.05 mm
Specifications Dimension F
0.135 in | 3.43 mm
Specifications Inductance H 20
68.0 µH
Specifications Max Dc Resistance At 25
0.200 Ohm
