The High-Performance CB-NX Collet Chuck features a cutting-edge dead length design with a reduced diameter nose for optimal tool clearance. Designed to minimize pullback effect on workpieces, this chuck boasts radial adjusting screws for precise collet seat alignment within .0002 inches. With a lubricated-for-life design and all components hardened and ground for accuracy and durability, it ensures minimal maintenance and long-term reliability. Mount stop plates and ejectors inside for versatile chucking applications.
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

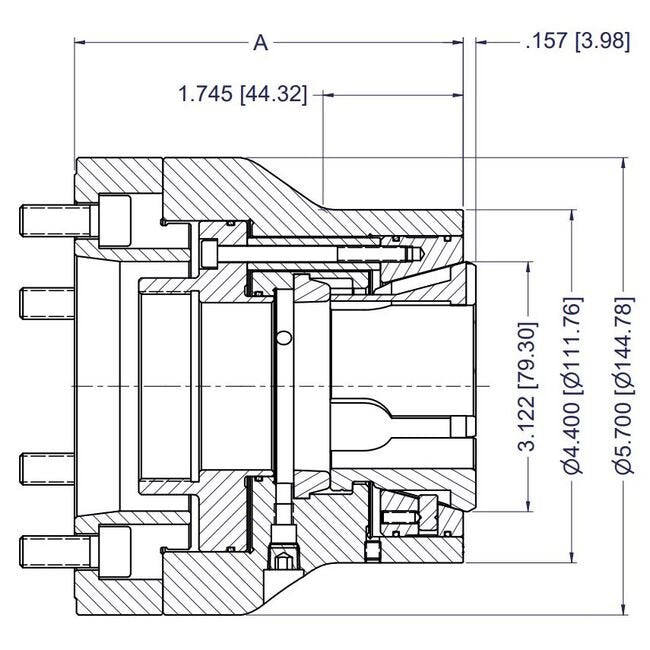

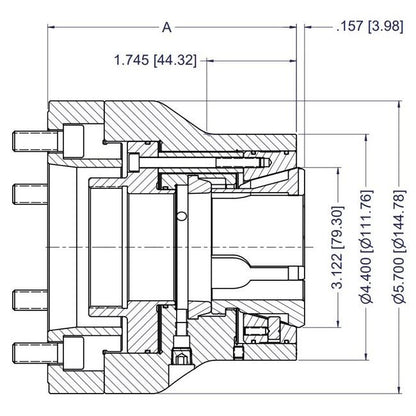

Specifications A Dimension
4.84 in | 122.94 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
52BZI
Specifications Item No
15 052 100
Specifications Linear Chuck Stroke
160 in | 4 mm
Specifications Max Clamping Diameter
2.000 in | 52 mm
Specifications Max Clamp Force
21,132 lbs | 94 kN
Specifications Max Draw Tube Thread
M60x2
Specifications Max Speed
7,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-5
Specifications Weight
20.25 lb | 9.19 kg
