High-Performance Chassis Mount Power Control Transformers
High-Performance Chassis Mount Power Control Transformers
SKU:POW-35e8ec
Enhance control and reliability with our power-packed Chassis Mount Transformers, perfect for a variety of electronic and electrical applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High-Performance Chassis Mount Power Control Transformers
$59.99
Quantity: 1
Claim Your Seller Account
High-Performance Chassis Mount Power Control Transformers
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled power control with our high-performance Chassis Mount Power Control Transformers. Designed to meet the demanding requirements of electronic, electromagnetic, and electrical control applications, these transformers deliver precise secondary voltages for reliable operation with relays, solenoids, motors, pumps, and more. With primary alternating current voltages of 115V or 230V, a robust electrical rating of 96 V·A, and versatile secondary voltage options, these transformers are the ideal choice for a wide range of industrial and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Applications
RelaysSolenoidsSmall MotorsSpeed ChangersPumpsHeating ElementsControl Valves for Fluids and GasesFans and BlowersElectronic TubesAutomatic Assembly EquipmentRecording DevicesElevatorsDoor OpenersLow Voltage Lamps
Specifications Case Type
U
Specifications Connections
Lugs

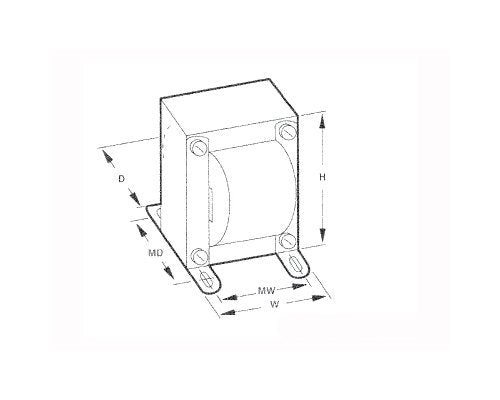

Specifications Depth D
3 3/16 in
Specifications Electrical Rating
96 V·A
Specifications Height H
3 13/32 in
Specifications Mounting Depth
2 5/8 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
2 1/4 in
Specifications Primary Alternating Current Ac Voltage
115 V | 230 V
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Secondary Voltage In Parallel Ac
24.0 V at 4.0 A
Specifications Secondary Voltage In Series Ac
48.0 V at 2.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
3.2 lb
Specifications Width W
2 13/16 in
Technical Notes Technical Notes

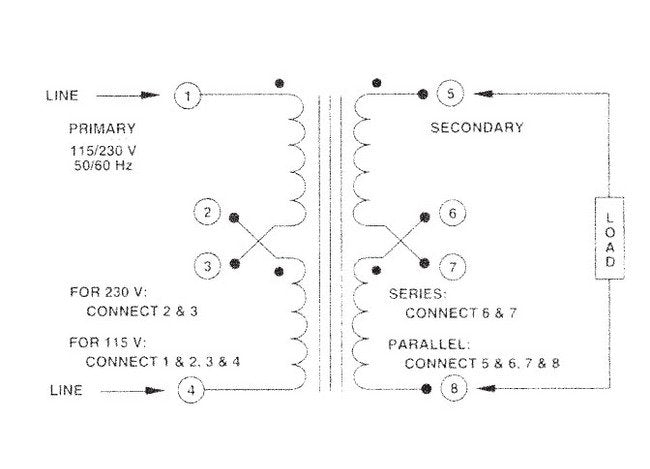

Hi-pot tested at 1,500 VRMS.Secondaries may be connected in series or parallel for expanded voltage and current ranges. See Control Transformer Connections diagram.Transformer termination is solder lug.
