High-Performance Chassis Mount Power Transformers
High-Performance Chassis Mount Power Transformers
SKU:POW-f8e4b7
Experience top-quality power transformers meeting international standards with dual bobbin design and 'quick-connect' terminations.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
High-Performance Chassis Mount Power Transformers
$69.99
Quantity: 1
Claim Your Seller Account
High-Performance Chassis Mount Power Transformers
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

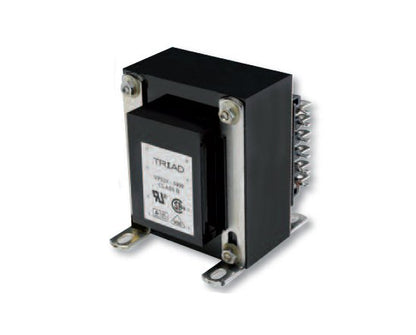

Our Chassis Mount Quick-Connect World Series™ Power Transformers are meticulously engineered to meet stringent U.S. and International standards such as CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design encased in UL-approved high-temperature material, these transformers offer uncompromising safety and efficiency. With primary and secondary coils electrically isolated, and sizes ranging from 25 VA to 175 VA, they provide versatile power solutions suitable for various applications. Experience seamless integration with 'quick-connect' terminations for effortless installation and exceptional performance.
Product Specifications
Specifications Depth D
2 5/16 in
Specifications Dimension B
1 3/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
80 V·A
Specifications Height H
3 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/4 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
14.0 V at 5.6 A
Specifications Secondary Series
28.0 V CT at 2.8 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
2.80 lb
Specifications Width W
2 1/2 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
