High-Performance Chassis Mount Power Transformers

High-Performance Chassis Mount Power Transformers

POW-26e307

Explore our Chassis Mount Leaded World Series™ Power Transformers for reliable performance and enhanced safety standards.

$45.99
$45.99
Sale

Initiate Order

High-Performance Chassis Mount Power Transformers

High-Performance Chassis Mount Power Transformers

$45.99

Quantity: 1

Claim Your Seller Account

High-Performance Chassis Mount Power Transformers

High-Performance Chassis Mount Power Transformers

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

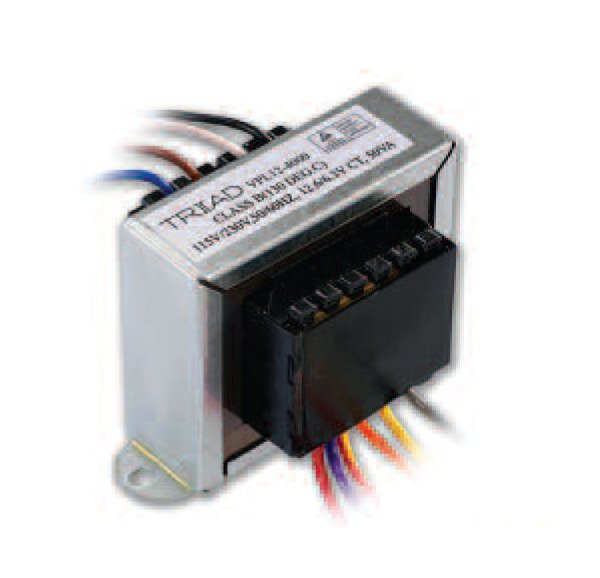

The Chassis Mount Leaded World Series™ Power Transformers are expertly designed to meet stringent International safety agency standards, featuring European style split bobbins for reduced interwinding capacitance. With primary windings ranging from 5 VA to 56 VA at 115V/230V 50/60 Hz, these transformers ensure exceptional performance and reliability. They offer 3,500V isolation between primary and secondary windings, along with a 6mm creepage distance primary to secondary, guaranteeing maximum safety measures and efficiency.

Product Specifications

Note 0

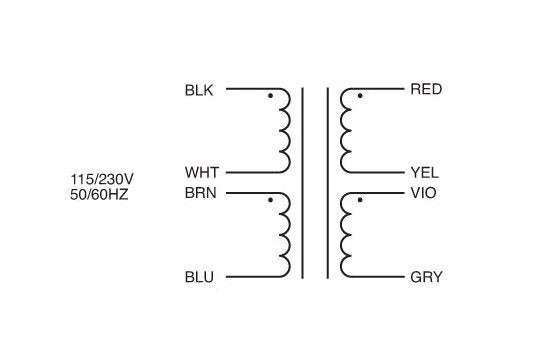

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independentlyClass 2/3 UL File: E65390, others TUV only
Specifications Case Type
X
Specifications Center Tap
N
Specifications Creepage Distance
6 mm

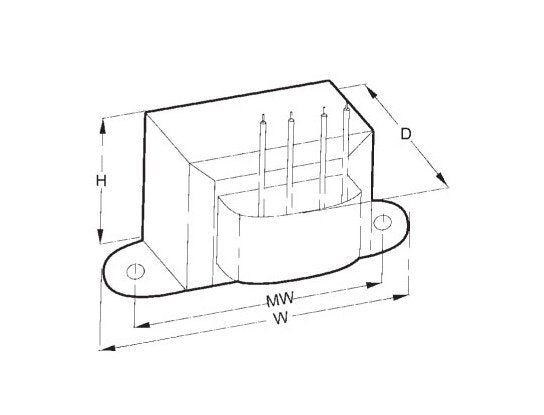

Specifications Depth D
1 3/4 in
Specifications Electrical Rating
10 V·A
Specifications Height H
1 3/4 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel Connected
10.00 V | 1.000 A
Specifications Secondary Series Connected
20.0 V | 0.500 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.70 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
