High-Performance Chassis Mount Power Transformers
High-Performance Chassis Mount Power Transformers
SKU:POW-7a493e
Compact yet powerful Chassis Mount Quick Pack™ Power Transformers for versatile applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High-Performance Chassis Mount Power Transformers
$49.99
Quantity: 1
Claim Your Seller Account
High-Performance Chassis Mount Power Transformers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled efficiency with our Chassis Mount Quick Pack™ Power Transformers. Featuring a compact design without compromising on power, these transformers deliver exceptional performance. Bobbin wound for space-saving benefits and split bobbin nonconcentric winding for cost-effective shielding, they are ideal for a wide range of applications. With a primary voltage of 115 V and hi-pot testing up to 2,500 VRMS, these transformers ensure reliability and safety. Whether for consumer electronics or institutional equipment, these transformers provide the power you need in a compact package.
Product Specifications
Specifications Dimension A
2 11/16 in
Specifications Dimension B
1 1/16 in
Specifications Electrical Rating
56.0 V·A
Specifications Height H
2 1/4 in
Specifications Length L
3 11/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
3 1/8 in
Specifications Output Rating
28.0 V CT at 2.0 A
Specifications Primary Frequency
50 Hz | 60 Hz

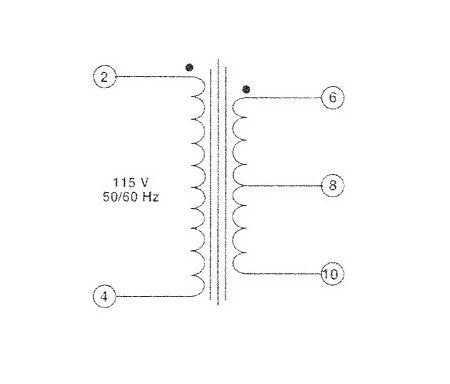

Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.70 lb
Specifications Width W
1 13/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
