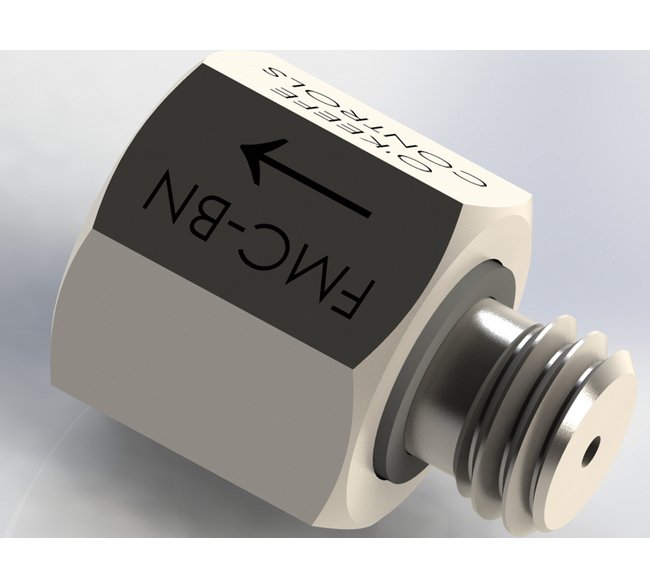

High-Performance Check Valves - NPT Connection, Ball Type
High-Performance Check Valves - NPT Connection, Ball Type
SKU:CHE-7a382c
Premium NPT Ball Check Valves for secure one-way flow control in liquids or gases.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High-Performance Check Valves - NPT Connection, Ball Type
$29.99
Quantity: 1
Claim Your Seller Account
High-Performance Check Valves - NPT Connection, Ball Type
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our high-performance ball type check valves with NPT connection are meticulously crafted from 303 SS and feature Buna-N ball material for exceptional sealing properties. Designed for liquids or gases, these valves ensure one-way flow with zero reverse flow, thanks to their metal to metal construction. With a cracking pressure of 125 psig and operating at 180 °F, these valves promise superior reliability and low seat leakage. Experience long-lasting durability and cost-effectiveness with our all-metal construction option.
Product Specifications
Dimensions Orifice Diameter
0.031 in
Dimensions Total Length
0.485 in
Dimensions Width Across Flats Hex
5/16 in
Features Features
All metal construction option Long life operation Low cost
Flow Data Air Flow At 100 Psig
40 L/min
Flow Data Air Flow At 25 Psig
20 cm³/min
Specifications Ball Material
Buna-N
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
125 psig
Specifications Cv
0.02
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
125 psig
Specifications Maximum Temperature
180 ºF
Specifications Nominal Orifice Size
31
Specifications Seal Material
Viton
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
