High-Performance CHG Series Metallized Film Capacitor
High-Performance CHG Series Metallized Film Capacitor
SKU:MET-341fdb
Cutting-edge CHG Series Capacitor: 0.21 µF, up to 700 V, conduction-cooled, ideal for institutions.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High-Performance CHG Series Metallized Film Capacitor
$49.99
Quantity: 1
Claim Your Seller Account
High-Performance CHG Series Metallized Film Capacitor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

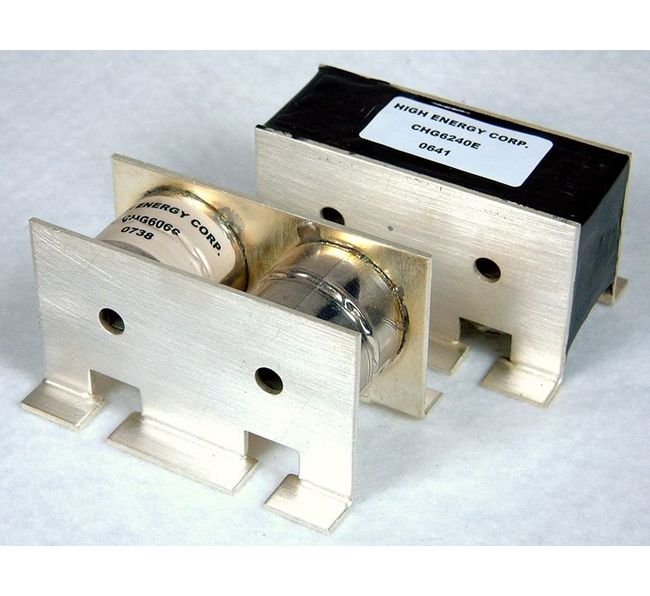

The High-Performance CHG Series Metallized Film Capacitor is a cutting-edge solution designed for demanding applications. With a capacitance range of 0.21 µF and a maximum working voltage of 700 V, this capacitor delivers exceptional performance. It features a compact design (3 x 2 x 1 3/4 in) with conduction cooling by bus bars, ensuring efficient heat dissipation. The capacitor's compliance with strict industry standards makes it an ideal choice for government and institutional procurement needs.
Product Specifications
Specifications Cap
0.21 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

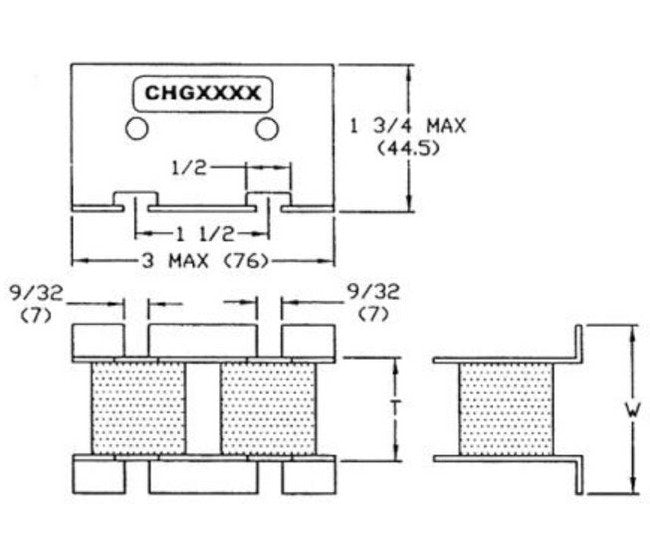

Specifications Dimensions
3 x 2 x 1 3/4 in | 76.2 x 50.8 x 39.2 mm
Specifications Dimension T
1 3/16 in | 30.2 mm
Specifications Dimension W
2 in | 51 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
389 kHz
Specifications Fl
270 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
300 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
175 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.23 kg | 0.50 lb
