High-Performance CHH Series Metallized Film Capacitors

Name: High-Performance CHH Series Metallized Film Capacitors
Brand: High Energy Corp.
SKU: MET-4687b5
Price: 49.99 USD
Availability: OutOfStock

SKU:MET-4687b5

High-performance metallized film capacitors for industrial applications with a capacitance range of 0.1 to 2.5 µF and VMAX (RMS) of 600 V. Compact and efficient design.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

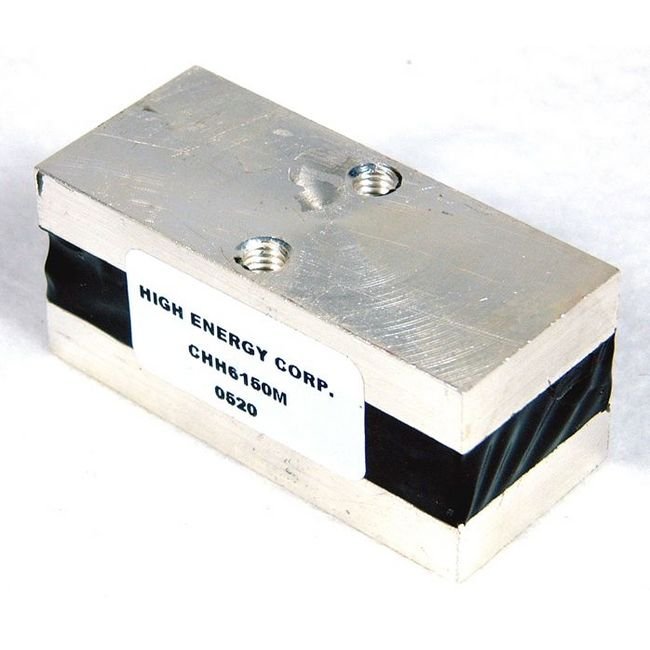

The CHH Series Metallized Film Capacitors offer exceptional performance, with a capacitance range of 0.1 to 2.5 µF and a VMAX (RMS) of 600 V, making them ideal for demanding industrial applications. These capacitors feature a compact design measuring 2 11/16 x 1 3/16 x 1 3/16 in and are conduction-cooled by bus bars, ensuring reliable operation even at temperatures up to +90 ºC. With a dissipation factor of only 0.1% and stray inductance of less than 5 nH, the CHH Series capacitors guarantee efficient and stable electrical performance. Stay ahead in your projects with these capacitors that are stackable in series and parallel, offering flexibility and high power handling capabilities.

Product Specifications

Specifications Cap

0.66 µF

Specifications Capacitance Range

0.1 to 2.5 µF Standard

Specifications Capacitance Tolerance

±10% Standard

Specifications Cooling Method

Conduction-cooled by bus bars

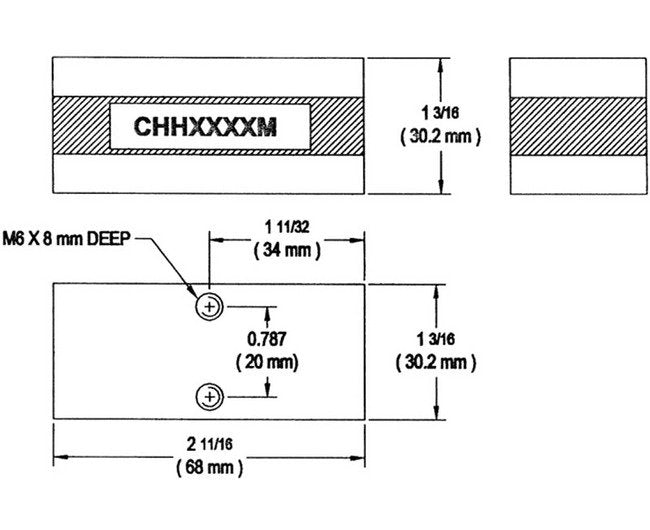

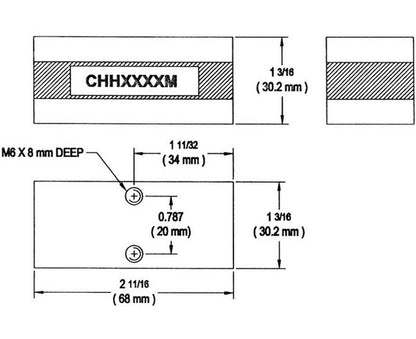

Specifications Dimensions

2 11/16 x 1 3/16 x 1 3/16 in | 68 x 30.2 x 30.2 mm

Specifications Dissipation Factor

0.1% Maximum

Specifications Fh

135 kHz

Specifications Fl

107 kHz

Specifications Fmax

800 kHz

Specifications Imax Rms

300 A

Specifications Operating Temperature

Up to +90 ºC

Specifications Smax

160 kV·A

Specifications Stray Inductance

Less than 5 nH

Specifications Vmax Rms

600 V

Specifications Weight

0.5 kg | 1.1 lb
