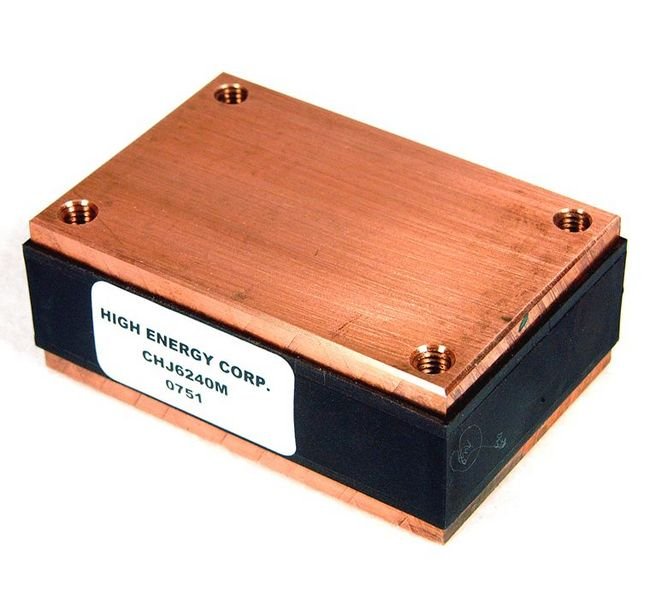

The CHJ Series Metallized Film Capacitors are designed for exceptional performance in demanding applications. With a working voltage of up to 700 VRMS and a maximum power of 210 kVA, these capacitors deliver reliable and efficient operation. They are conduction-cooled by bus bars, ensuring optimal thermal management. Stackable in series and parallel configurations, these capacitors offer versatility and scalability. The capacitance range of 0.01 to 0.33 µF with a capacitance tolerance of ±10% ensures precision in electrical systems. With dimensions of 3 x 2 x 1 7/16 in and a weight of 0.27 kg, they are compact yet robust, suitable for a wide range of applications. Operating up to +90 ºC, with a dissipation factor of 0.1% maximum and stray inductance less than 5 nH, these capacitors meet stringent performance requirements.
Product Specifications
Specifications Cap
0.01 to 0.33 µF
Specifications Capacitance Range
0.01 to 0.33 µF Custom
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

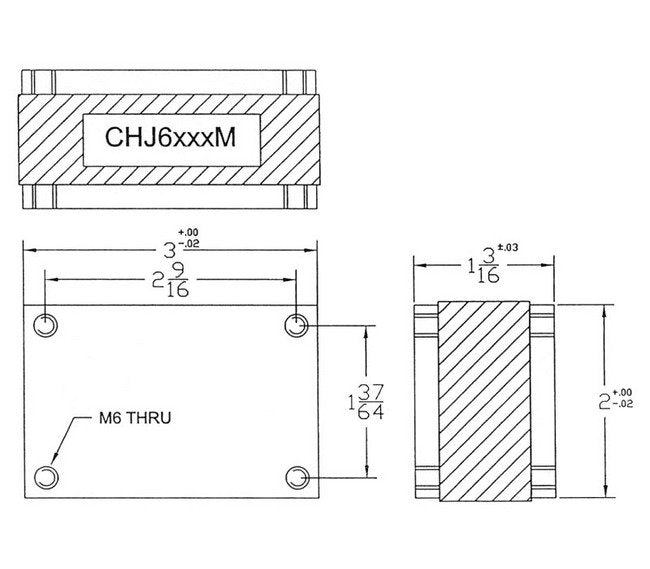

Specifications Dimensions
3 x 2 x 1 7/16 in | 76.2 x 50.8 x 36.5 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Operating Temperature
Up to +90 ºC
Specifications Stray Inductance
Less than 5 nH
Specifications Weight
0.27 kg | 0.6 lb
