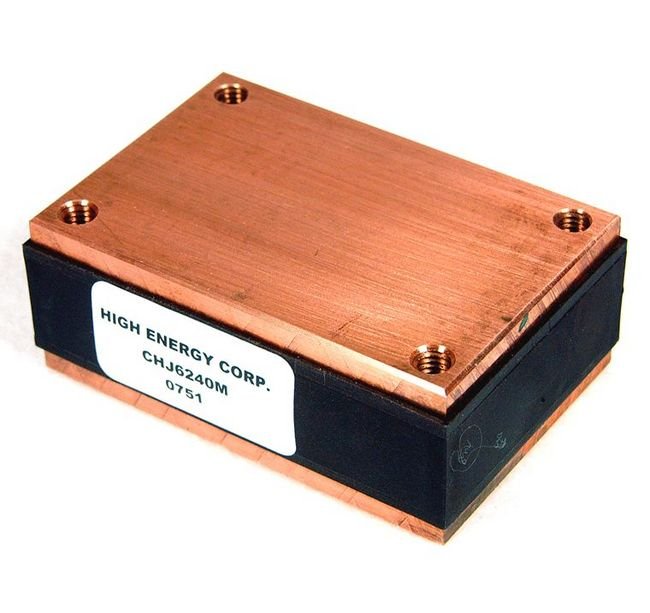

High-Performance CHJ Series Metallized Film Capacitors

Name: High-Performance CHJ Series Metallized Film Capacitors
Brand: High Energy Corp.
SKU: MET-7048d2
Price: 49.99 USD
Availability: OutOfStock

SKU:MET-7048d2

Explore our high-performance CHJ Series Metallized Film Capacitors for reliable and efficient electrical solutions.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The CHJ Series Metallized Film Capacitors offer cutting-edge performance for high-demand electrical applications. With a working voltage of up to 700 VRMS and a maximum power of 210 kVA, these capacitors are designed to handle up to 600 ARMS of current while being conduction-cooled for optimal efficiency. Stackable in series and parallel configurations, these capacitors provide exceptional flexibility and reliability for a wide range of industrial and institutional applications. From their precise capacitance range of 0.18 to 5.0 µF to their low dissipation factor of 0.1%, the CHJ Series ensures consistent performance in diverse operating conditions. Compliant with industry standards, these capacitors guarantee robust and stable operation in demanding environments.

Product Specifications

Specifications Cap

0.33 µF

Specifications Capacitance Range

0.18 to 5.0 µF Standard

Specifications Capacitance Tolerance

±10% Standard

Specifications Cooling Method

Conduction-cooled by bus bars

Specifications Dimensions

3 x 2 x 1 7/16 in | 76.2 x 50.8 x 36.5 mm

Specifications Dissipation Factor

0.1% Maximum

Specifications Fh

323 kHz

Specifications Fl

207 kHz

Specifications Fmax

600 kHz

Specifications Imax Rms

375 A

Specifications Operating Temperature

Up to +90 ºC

Specifications Smax

210 kV·A

Specifications Stray Inductance

Less than 5 nH

Specifications Vmax Rms

700 V

Specifications Weight

0.27 kg | 0.6 lb
