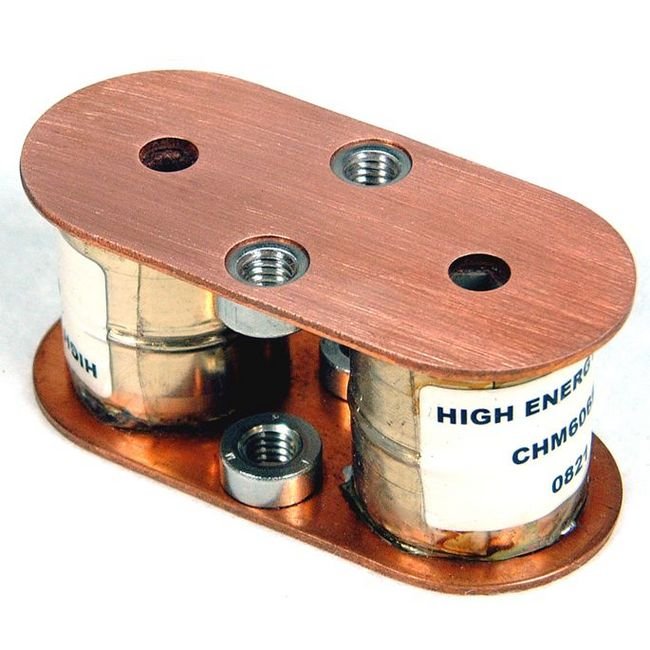

The CHM Series Metallized Film Capacitors offer exceptional performance for institutional and consumer applications. With a working voltage of up to 700 VRMS and a maximum power of 160 kVA, these capacitors are designed for high-demand environments. They are conduction-cooled by bus bars for efficient heat dissipation, making them suitable for series and parallel stackable configurations. With a capacitance range of 0.1 to 2.5 µF and a capacitance tolerance of ±10%, these capacitors ensure reliable and precise operation. The compact dimensions of 2 3/4 x 1 1/4 x 1 3/16 inches make them versatile for various installations.
Product Specifications
Specifications Cap
0.17 µF
Specifications Capacitance Range
0.1 to 2.5 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

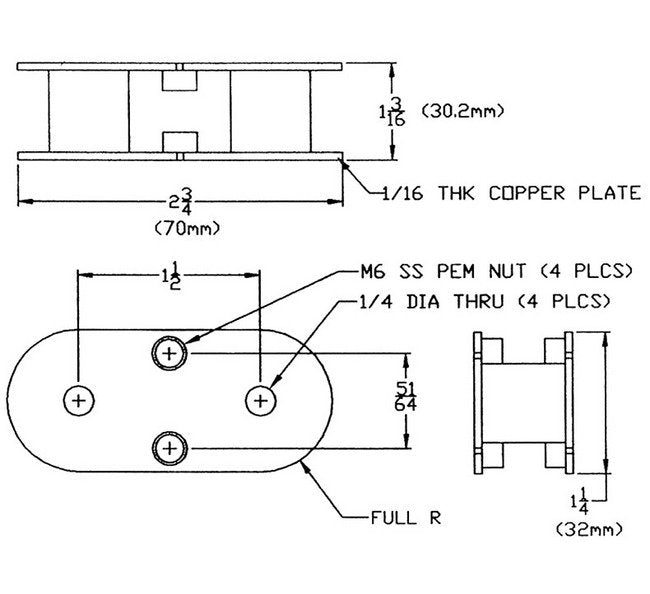

Specifications Dimensions
2 3/4 x 1 1/4 x 1 3/16 in | 70 x 32 x 30.2 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
365 kHz
Specifications Fl
305 kHz
Specifications Fmax
1000 kHz
Specifications Imax Rms
250 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
160 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.5 kg | 1.1 lb
