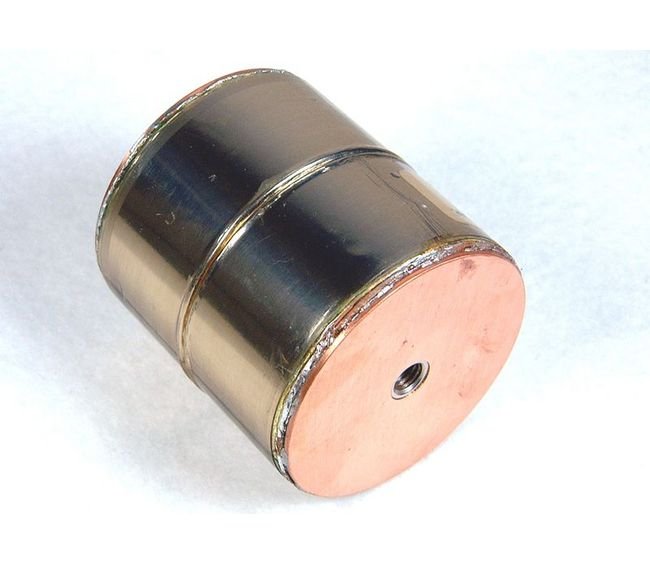

High-Performance CHN0 Series Metallized Film Capacitors

Name: High-Performance CHN0 Series Metallized Film Capacitors
Brand: High Energy Corp.
SKU: MET-b14263
Price: 129.99 USD
Availability: OutOfStock

SKU:MET-b14263

Enhance performance with CHN0 Series Metallized Film Capacitors - 650 VRMS, 250 kVA, conduction cooled. Reliable & efficient!

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your electronic systems with the advanced CHN0 Series Metallized Film Capacitors. These capacitors boast a working voltage of up to 650 VRMS, 250 kVA max power, and conduction cooling technology, ensuring reliable operation in demanding environments. With a capacitance range of 1.4 to 10 µF and superior thermal management, these capacitors deliver efficient power handling and low dissipation factor. Ideal for industrial and institutional applications requiring high performance and durability.

Product Specifications

Specifications Cap

2.2 µF

Specifications Capacitance Range

1.4 to 10 µF

Specifications Capacitance Tolerance

±10% Standard

Specifications Cooling Method

Conduction-cooled by bus bars

Specifications Dissipation Factor

0.1% Maximum

Specifications Fh

46 kHz

Specifications Fl

43 kHz

Specifications Fmax

70 kHz

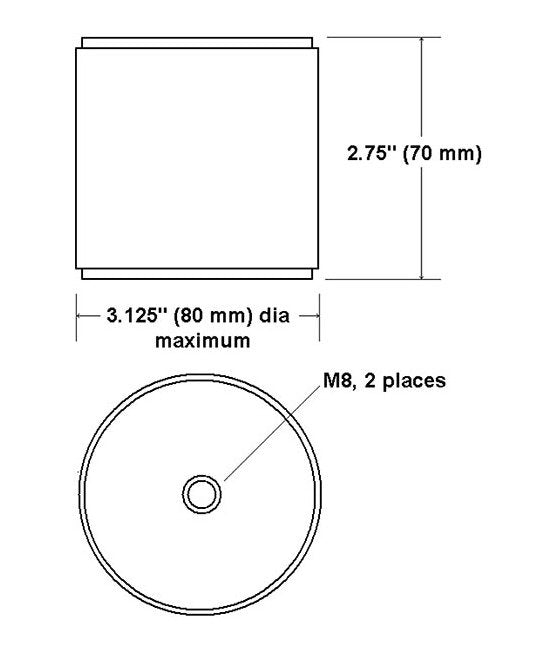

Specifications Height

2 3/4 in | 70 mm

Specifications Imax Rms

400 A

Specifications Max Diameter

3 1/8 in | 80 mm

Specifications Operating Temperature

Up to +90 ºC

Specifications Smax

250 kV·A

Specifications Stray Inductance

Less than 5 nH

Specifications Vmax Rms

650 V

Specifications Weight

0.75 kg | 1.7 lb
