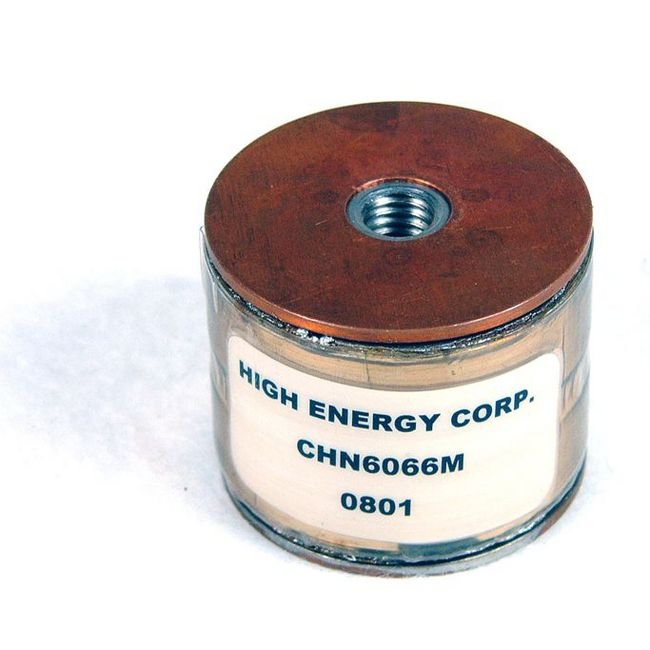

Boost your electronic systems with our CHN6 Series Metallized Film Capacitors, featuring a capacitance range of 0.025 to 1.2 µF, 1000 V RMS working voltage, and conduction-cooled design. With a maximum power of 120 kVA and high current handling capability (up to 125 A), these capacitors ensure reliable performance under demanding conditions. Compliant with strict industry standards, including Federal procurement requirements, these capacitors are ideal for both consumer and institutional applications.
Product Specifications
Specifications Cap
0.03 µF
Specifications Capacitance Range
0.025 to 1.2 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars
Specifications Diameter
1 3/16 in | 30 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
690 kHz
Specifications Fl
636 kHz
Specifications Fmax
10000 kHz
Specifications Height
1 1/8 in | 29 mm
Specifications Imax Rms
125 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
120 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
1000 V
Specifications Weight
0.15 kg | 0.33 lb
