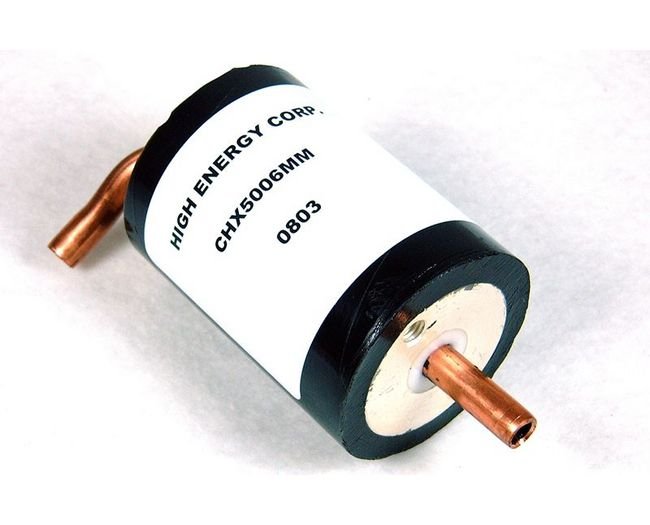

High-Performance CHX Series Water-Cooled Capacitors

Name: High-Performance CHX Series Water-Cooled Capacitors
Brand: High Energy Corp.
SKU: WAT-618df6
Price: 89.99 USD
Availability: OutOfStock

SKU:WAT-618df6

Enhance your power systems with our high-capacity CHX Series Water-Cooled Capacitors. Precision-engineered for efficiency and reliability.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

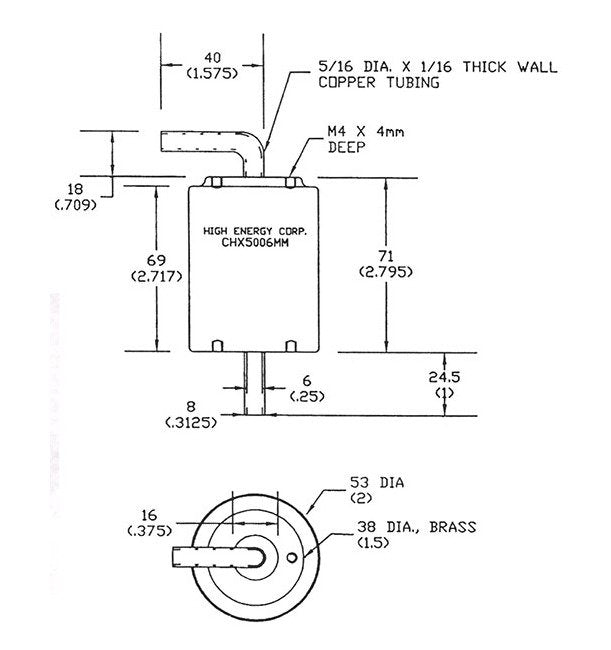

Experience superior electrical performance with our CHX Series Water-Cooled Capacitors. With a capacitance range of up to 0.069 µF and ±10% capacitance tolerance, these capacitors ensure precision in power applications. Designed for industrial settings, they are individually water-cooled to dissipate heat effectively, maintaining optimal operating temperature. Our capacitors boast a compact design with a diameter of 2 1/16 inches and a height of 2 13/16 inches, making them versatile for diverse installation needs.

Product Specifications

Cooling Requirements Capacitor Temperature

Not to exceed 90ºC

Cooling Requirements Cooling Water Pressure

Not to exceed 4 Bar (60 PSIG)

Cooling Requirements Flow Rate

1.5 L/min | 0.41 gpm

Cooling Requirements Temperature Rise

The capacitor can exhibit a temperature rise of up to 40ºC at full rated power

Cooling Requirements Water Temperature

Inlet water temperature must be 50ºC or less

Specifications Cap

Up to 0.069 µF

Specifications Capacitance Range

Up to 0.069 µF Custom

Specifications Capacitance Tolerance

±10% Standard

Specifications Cooling Method

Individually water-cooled

Specifications Diameter

2 1/16 in | 53 mm

Specifications Dissipation Factor

0.1% Maximum

Specifications Height

2 13/16 in | 71 mm

Specifications Operating Temperature

Up to +90 ºC

Specifications Stray Inductance

Less than 5 nH

Specifications Weight

0.36 kg | 0.79 lb
