High-Performance Class-2 Power Control Transformers
High-Performance Class-2 Power Control Transformers
SKU:POW-8e7628
Enhance safety and efficiency with our reliable Class-2 Power Control Transformers. Ideal for consumer and institutional use.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
High-Performance Class-2 Power Control Transformers
$79.99
Quantity: 1
Claim Your Seller Account
High-Performance Class-2 Power Control Transformers
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

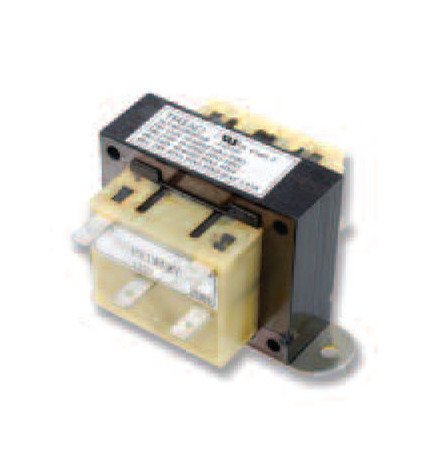

Upgrade your power control with our Class-2 Power Control Transformers, featuring tamper-resistant shrouds for enhanced safety and a steel bracket for easy mounting. With primary input voltages of 120 V, 208 V, and 240 V, and a secondary output voltage of 24 V, these transformers deliver a maximum power of 50 VA. The connections are made easy with lugs, and the compact design ensures easy installation. Meeting stringent safety standards, these transformers are perfect for both consumer and institutional applications.
Product Specifications
Specifications Connections
Lugs

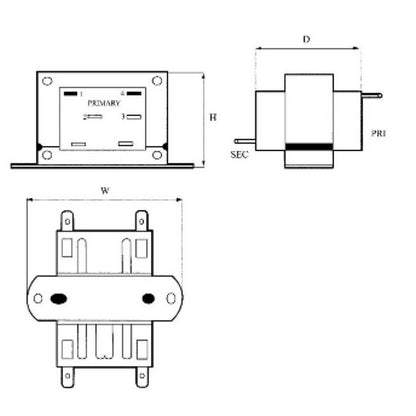

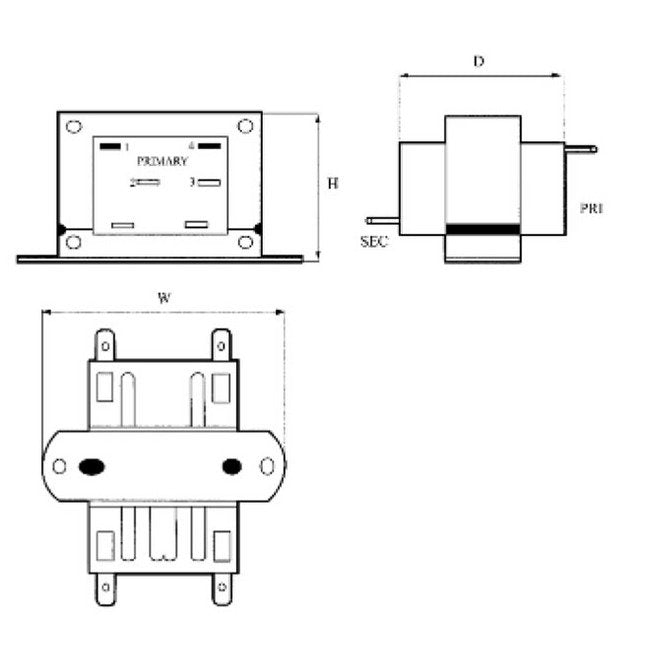

Specifications Depth D
71.5 mm
Specifications Height H
56.5 mm
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Maximum Power
50 V·A
Specifications Mounting Dimensions
79.38 mm
Specifications Primary Input Voltage
120 V | 208 V | 240 V
Specifications Secondary Output Voltage
24 V
Specifications Weight
2.00 lb
Specifications Width W
92.5 mm
