High-Performance Copper Conductor Bars with Pre-Installed Splice
High-Performance Copper Conductor Bars with Pre-Installed Splice
SKU:CRA-3d50eb
Enhance efficiency with our 400A Copper Conductor Bars. Durable, safe, and reliable for crane control systems. Optimal performance guaranteed.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
High-Performance Copper Conductor Bars with Pre-Installed Splice
$399.99
Quantity: 1
Claim Your Seller Account
High-Performance Copper Conductor Bars with Pre-Installed Splice
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior electrical conductivity and durability with our Copper Conductor Bars. Designed for a 400A amperage rating and featuring a Medium Heat Cover for safety, these bars offer a cross-sectional area of 93 mm² and a maximum system voltage of 600V AC/DC. With impressive resistance and impedance values, along with a flame-retardant polycarbonate cover, these bars ensure reliable performance under challenging conditions. Ideal for crane control systems, our bars come in a standard 4.5m length with various support pitch options. Invest in quality and compliance with these Copper Conductor Bars.
Product Specifications
Cover Specifications Cover Material
Polycarbonate
Cover Specifications Dielectric Strength
240 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
24%
Cover Specifications Specific Density
1.15 g/cm³
Cover Specifications Surface Resistivity
>1014 Ω
Cover Specifications Vicat Softening Temperature
250 ºF | 121.1 ºC
Cover Specifications Volume Resistivity
>1016 Ω/cm
Specifications Amperage Rating
400 A

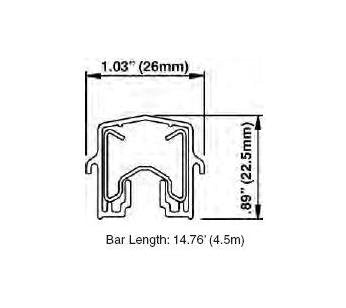

Specifications Bar Length
4.5 m

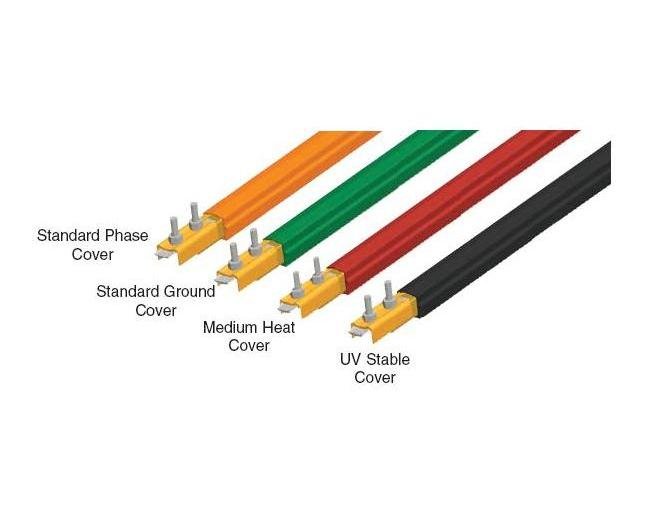

Specifications Cover Type
Medium Heat Cover (Red)
Specifications Cross Sectional Area
93 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.000221 Ω/m
Specifications Material
Copper
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
400 A
Specifications Resistance R For Dc At 20 C
0.000184 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
10 lb | 4.5 kg
