High-Performance Cutoff Vee Bottom with Hole and Countersink, 0.476 / 0.482 in
High-Performance Cutoff Vee Bottom with Hole and Countersink, 0.476 / 0.482 in
SKU:GRO-72e4a1
Precision grooving solution with 120° angle, 0.476-0.482 in thickness, and customizable grade options.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High-Performance Cutoff Vee Bottom with Hole and Countersink, 0.476 / 0.482 in
$49.99
Quantity: 1
Claim Your Seller Account
High-Performance Cutoff Vee Bottom with Hole and Countersink, 0.476 / 0.482 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High-Performance Cutoff Vee Bottom with Hole and Countersink is a top-of-the-line grooving solution designed for precision cutting applications. With a thickness ranging from 0.476 to 0.482 inches and an angular design of 120 degrees, this product ensures optimal cutting performance. Its width of 0.497 to 0.503 inches and length of 0.653 to 0.659 inches provide versatility for various cutting tasks. The strategically placed hole of 0.215 to 0.221 inches and countersink of 0.427 to 0.433 inches enhance operational efficiency. Grade availability can be customized based on specific requirements, ensuring tailored performance for each project.

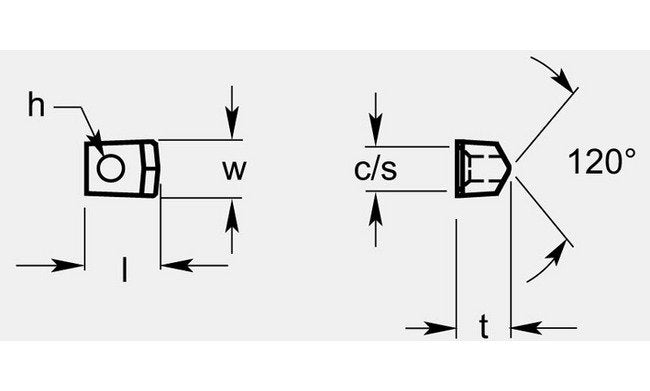

Product Specifications
Dimensional Specification Angle A
120 º
Dimensional Specification Cs
0.427 / 0.433 in
Dimensional Specification Hole
0.215 / 0.221 in
Dimensional Specification L
0.653 / 0.659 in
Dimensional Specification Thickness T
0.476 / 0.482 in
Dimensional Specification Width W
0.497 / 0.503 in
Grade Availability Grade Availability
Available on Request
