The High-Performance Digital Strain Gage Module (DCell) is a compact and advanced digital signal conditioner module designed for applications demanding utmost measurement accuracy, resolution, and stability. With the ability to convert Bridge sensor outputs into digital signals, this module excels in aerospace, industrial weighing, marine, and automotive sectors. Featuring internal signal conditioning to minimize noise interference, it supports longer cable runs and offers versatile power options. The module interfaces using RS-485 and CAN protocols, enabling seamless communication. With up to 500 readings per second and comprehensive software tools, this module ensures efficient device configuration, calibration, and data logging. Contact Strainsert Engineering for tailored solutions and unparalleled technical support.
Product Specifications
Applications 0
AerospaceIndustrial WeighingMarineAutomotive
Features Benefits 0
Converts Bridge sensor output into digital signal.Miniature package that fits into sensor body.Ideal for single or multiple sensor systems.Eliminates the need for external signal conditioner and interconnections.Up to 500 readings/second.Software tools included.
Specifications 0

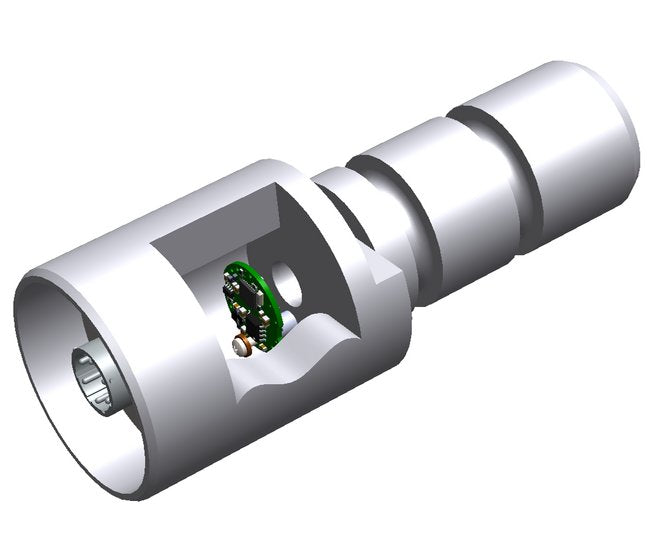

DCell module mounting and interconnection
Specifications Data Cable Length Rs485 Can
1,000 meters (3,280 feet), maximum (Dependent on Data transmission rate and number of sensors)
Specifications Data Transmission Rate Can
20K - 1M bps
Specifications Data Transmission Rate Rs485
2,400 - 230,400 bps
Specifications Humidity
0 to 95 %RH
Specifications Internal Resolution
16 Million counts/divisions
Specifications Power Supply Current
60 mA, maximum (45, typical max. with 350 Ohm Bridge)
Specifications Power Supply Ripple
100, maximum mVAC PK-to-PK
Specifications Power Supply Voltage
5 to 18 VDC (12, recommended)
Specifications Power Supply Wattage
450 mW, typical with 350 Ohm Bridge
Specifications Resolution At 100hz Noise Stable Over 100s
50,000 counts/divisions
Specifications Resolution At 10hz Noise Stable Over 100s
120,000 counts/divisions
Specifications Resolution At 1hz Noise Stable Over 100s
200,000 counts/divisions
Specifications Resolution At 500hz Noise Stable Over 100s
18,000 counts/divisions
Specifications Signal Filter
Dynamic recursive type - user programmable
Specifications Temperature Range Operating
-40 to 85 °C (-40 to 185 °F)
Specifications Temperature Range Storage
-40 to 85°C (-40 to 185°F)
